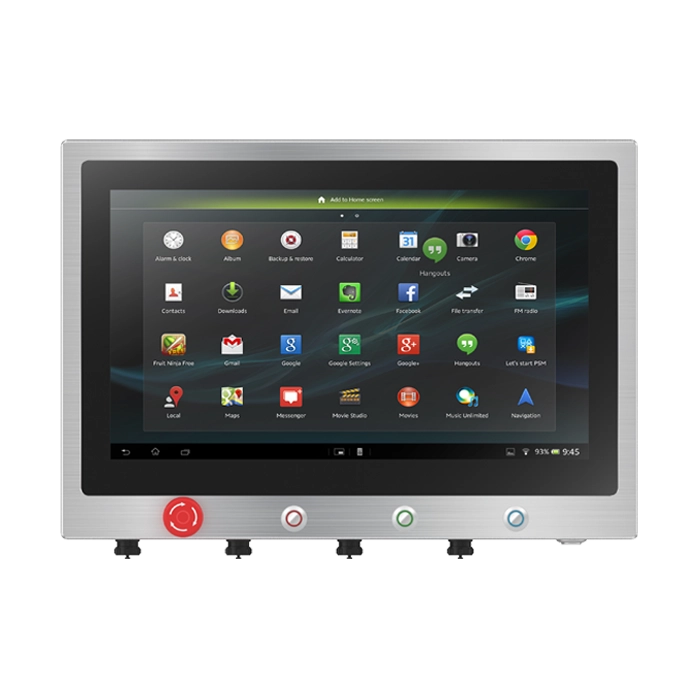

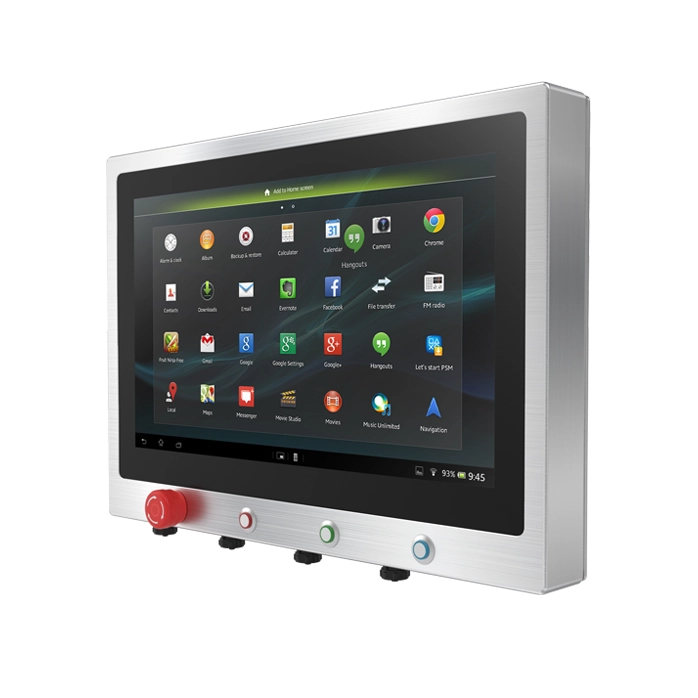

Ultra Rugged 15.6″ Stainless Control Panel | HMI-1500 | HMI-1500

The HMI-1500 is the ultimate rugged Control Panel, meticulously engineered for the harshest industrial environments. Its corrosion-resistant 316L stainless steel body ensures long-lasting durability, even in highly corrosive settings like car washes or food processing industries. With a sunlight-readable 15.6″ IPS LCD display and capacitive 10-point multi-touch, it offers crystal-clear visuals and precise interaction, no matter if you are indoor or out in challenging conditions. Powered by a Quad-core Cortex-A55 processor and running on Android 11 (optional Intel N200 CPU and Window OS), this device delivers seamless performance. Enhanced with an Emergency Stop Button and customizable push buttons, the HMI-1500 is a reliable and adaptable command center designed to maximize safety and efficiency in demanding applications.

Key Features
15.6" IPS LCD Screen (1920 x 1080 Resolution)
Powerful ARM Processor (Optional Intel CPU)
Android 11 OS (Optional Window 11)
Anti-corrosion 316L Stainless Steel Chassis
IP65 Water & Dust Protection
1 Emergency Stop Button
3 Programmable Buttons
Sunlight-Readable Display
Capacitive Touch Screen (Support Glove or Wet Touch)
  • Powerful Computing
    Powerful Computing

    Experience powerful computing with the HMI-1500, equipped with the advanced Quad-Core ARM Cortex-A55 processor and Mali G52 GPU. Offering a robust 3GB LPDDR4 memory, expandable to 4GB or 8GB, and up to 128GB of internal storage, this Control Panel is designed to handle demanding applications with ease. Running on Android 11, the HMI-1500 delivers exceptional performance and flexibility, providing the processing power and storage capacity needed for even the most intensive tasks and data requirements.

  • Superior Corrosion Resistance with 316L Stainless Steel

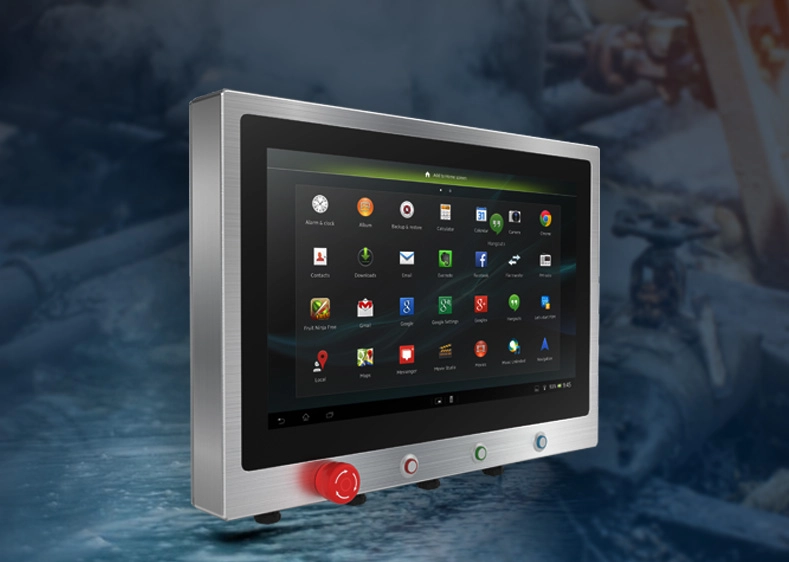

    Superior Corrosion Resistance with 316L Stainless Steel

    The HMI-1500 is built with superior corrosion resistance, thanks to its 316L stainless steel construction. This high-grade material is renowned for its exceptional durability and resistance to harsh environments, making it ideal for industrial applications exposed to corrosive substances, extreme temperatures, and moisture. Whether used in car washes, food processing facilities, or other demanding settings, the HMI-1500’s 316L stainless steel body ensures long-lasting performance and reliability, safeguarding your investment and maintaining operational efficiency in the toughest conditions.

  • IP65-rated Protection for Harsh Industrial Environments

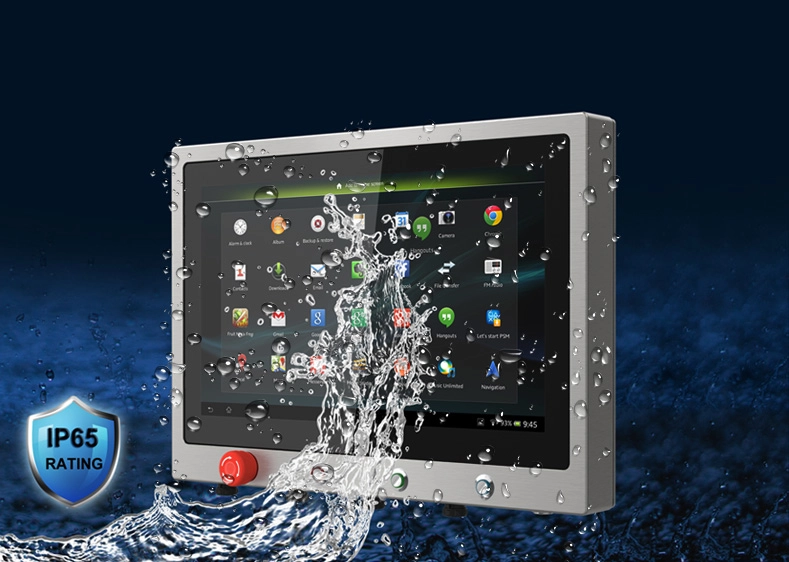

    IP65-rated Protection for Harsh Industrial Environments

    The HMI-1500 is designed to excel in challenging environments with its IP65 rating, offering robust protection against both dust and water. This advanced sealing ensures that the device remains fully operational and protected from the ingress of dust, while also withstanding powerful jets of water from any direction. Whether used in wet or dusty conditions, the HMI-1500’s IP65 rating guarantees reliable performance and durability, making it the perfect choice for demanding industrial settings where resilience and protection are paramount.

  • 3 Customizable Push Buttons for Enhanced Usability

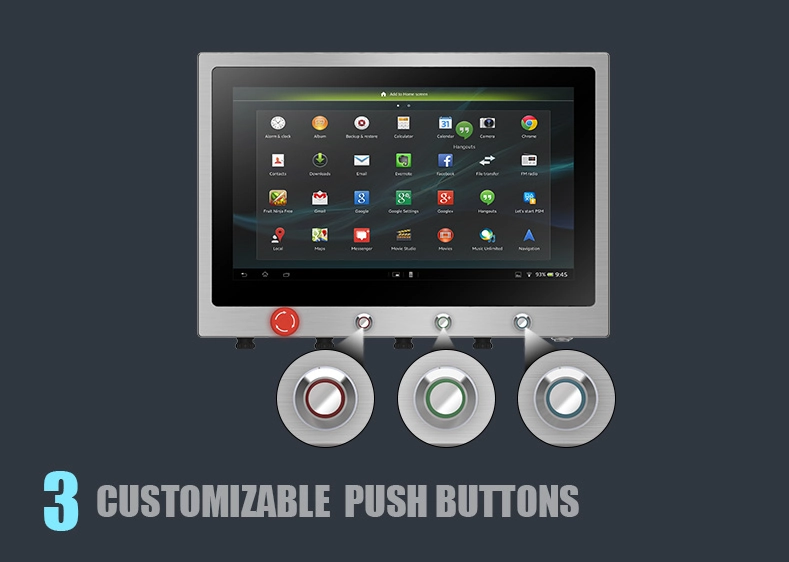

    3 Customizable Push Buttons for Enhanced Usability

    The HMI-1500 is equipped with 3 customizable push buttons that can be tailored to meet your specific application needs. Whether you need standard controls such as home, start, or pause, or unique commands tailored to your industry, these buttons provide flexibility in both function and labeling. This customization enhances usability and streamlines operations, ensuring that the HMI-1500 adapts seamlessly to your workflow.

  • Sunlight-readable Display with Advanced Anti-Glare Technology

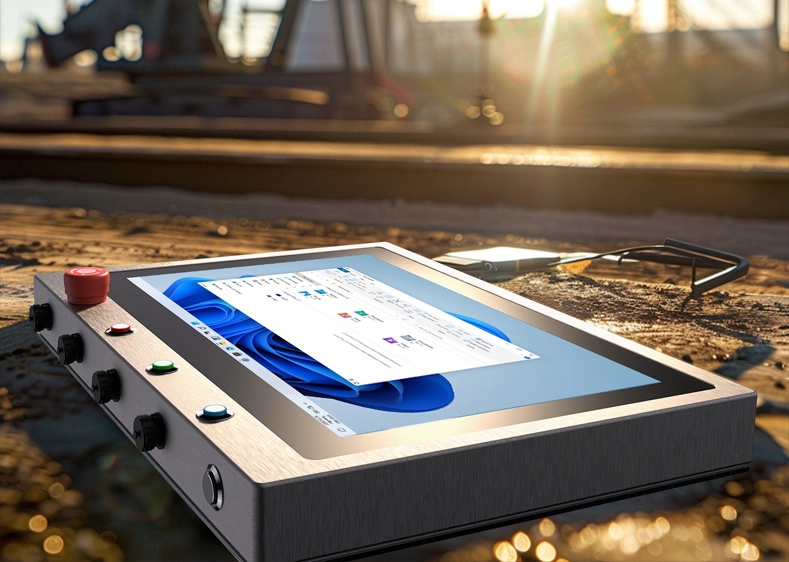

    Sunlight-readable Display with Advanced Anti-Glare Technology

    The HMI-1500 features a sunlight-readable display with advanced anti-glare technology, ensuring clear and vibrant visuals even in the brightest outdoor conditions. This high-performance screen reduces reflections and enhances readability, allowing you to work effectively in direct sunlight. With this cutting-edge display, the HMI-1500 provides exceptional clarity and visibility, making it the perfect choice for demanding environments where light conditions are a challenge.

  • Capacitive 10-point Multi-touch for Enhanced Interactivity

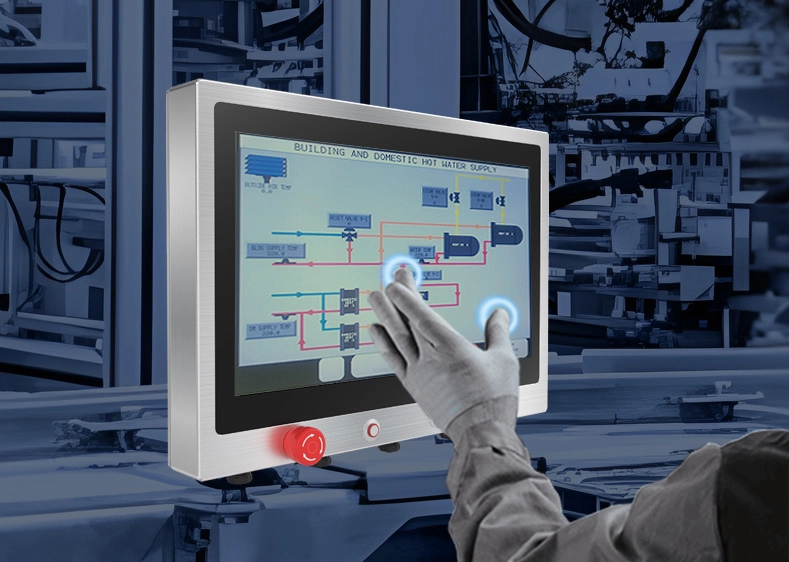

    Capacitive 10-point Multi-touch for Enhanced Interactivity

    Feature with a capacitive 10-point multi-touch display, the HMI-1500 had provide a precise and responsive touch interactions. This advanced technology allows for seamless multi-finger gestures, including pinch, zoom, and swipe, even in challenging conditions like wet environments or while wearing gloves. With its exceptional touch sensitivity, this device would be able to enhance the user’s control and efficiency, making it the ideal choice for dynamic and interactive applications where intuitive and reliable touch performance is crucial.

Specifications
RUGGEDNESS
SYSTEM
DISPLAY
COMMUNICATIONS
POWER
I/O INTERFACE
MECHANICAL
ENVIRONMENTAL
REGULATORY
RUGGEDNESS
IP Rating IP65
ESD Protection ±8kV (Air), ±4kV (Touch)
EMC Test Follows FCC
SYSTEM
Processor Quad Cortex-A53 + Quad Cortex-A72, 2.2GHz
Optional: Intel CPU N200 CPU
GPU

Mali-G52 MC3 MP4 GPU

Memory

4GB LPDDR4

Optional: 8GB

Storage 32 GB
Optional: 64GB / 128GB
OS Android 14
Optional: Linux or Window 11
DISPLAY
Screen Size 15.6" IPS LCD
Resolution 1920 x 1080
Brightness 800 nits
Touch Screen Capacitive 10-Point Multi-Touch
COMMUNICATIONS
Wi-Fi WiFi 6 802.11 a/b/g/n/ac/ax
Bluetooth Bluetooth V4.2
POWER
AC Adapter Input AC 100-240V, Output DC 12V 3A
I/O INTERFACE
Audio Optional
Camera Optional
Ports 1 x 1000M Ethernet
1 x USB 3.0
1 x RS485
1 x DC in
Buttons Power On/Off Button, Support 10s Hard Reset
3 x Programmable Buttons
1 x Emergency Stop Button
MECHANICAL
Chassis Front Chassis: 316L Stainless Steel
Rear Chassis: 316l Stainless Steel

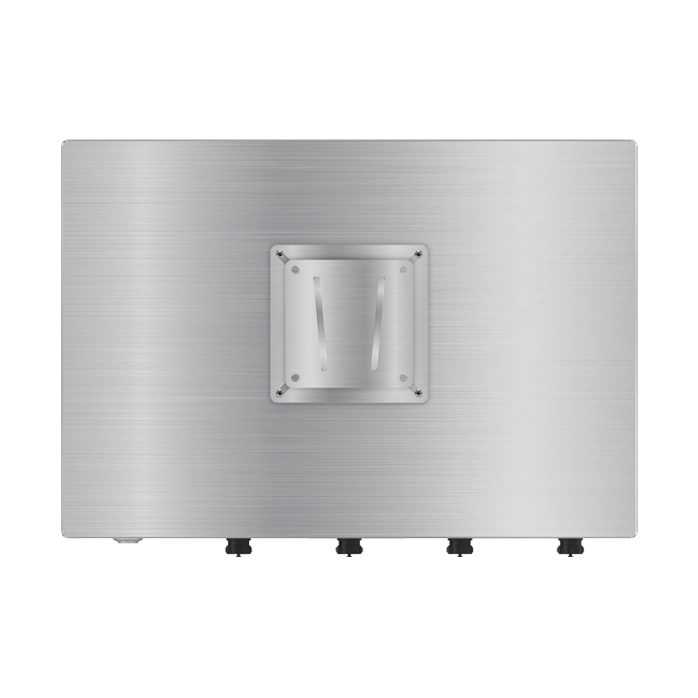

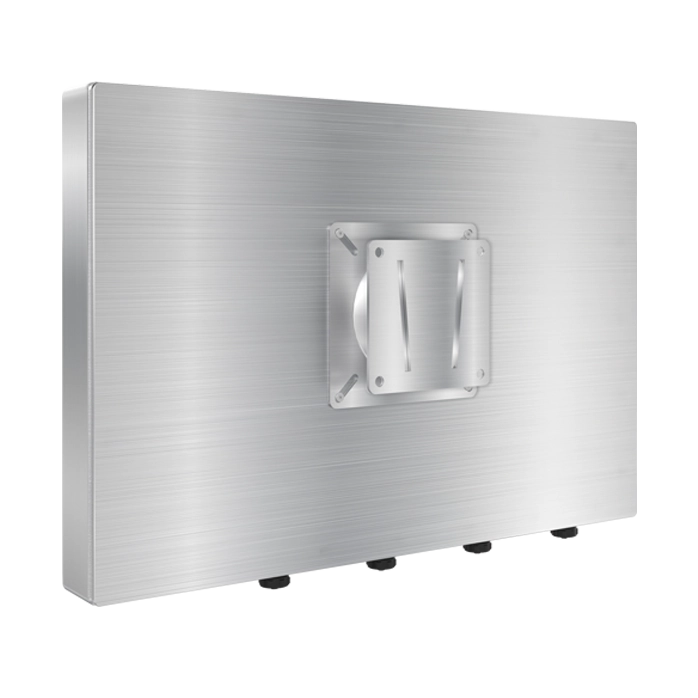

Mounting 100mm x 100mm VESA Mount
Dimensions 417 x 288.5 x 46 mm
ENVIRONMENTAL
Operation Temperature 0°C to 50°C
Storage Temperature -20°C to 60°C
Humidity 10% to 90% (Non-condensing)
REGULATORY
Certification FCC, RoHS Compliant
