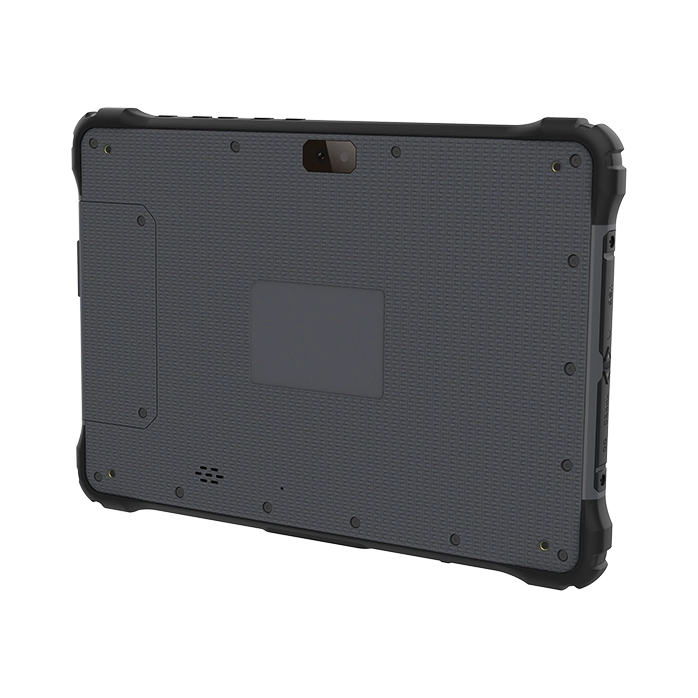

10.1″ Rugged Tablet PC | MS-100A

The 10.1” rugged tablet is designed for professionals across a wide range of demanding industries, including field services, logistics, construction, retail, and manufacturing. Featuring a vibrant IPS LCD display with 1920 x 1200 resolution, it ensures sharp, clear visuals even under direct sunlight. Powered by the Qualcomm SDM660 Octa-core processor, the tablet delivers robust performance, making multitasking and field applications seamless. Engineered for durability, it is equipped with IP67-rated water and dust protection and MIL-STD-810G certification for drop and shock resistance, ensuring reliable performance in harsh environments. With a long-lasting 12-hour battery, the tablet provides uninterrupted operation throughout the workday. The dock pogo connector allows for easy integration with optional peripherals, while the expansion bay supports modules like NFC, RFID, Smart Card Reader, Barcode Reader, and Rail Magnetic Stripe Reader, offering tailored solutions to meet the specific needs of industries such as warehousing, public safety, and transportation.

Key Features
10.1" IPS LCD Display (1920 x 1200 Resolution)
Qualcomm SDM660, Octa-core Qualcomm Kryo 260
Android 10
IP67 Water & Dust Protection
4ft Drop / Shock Protection (MIL-STD-810G)
Long Lasting Battery (12 Hours Standard Operation)
Wi-Fi (2.4GHz & 5GHz), Bluetooth 5.0, GPS
Dock Pogo Connector Supports Optional Peripherals
Options: NFC, RFlD, Smart Card Reader, Barcode Reader, Rail Magnetic Stripe Reader
  • Unmatched Performance with Qualcomm SDM660 Processor
    Unmatched Performance with Qualcomm SDM660 Processor

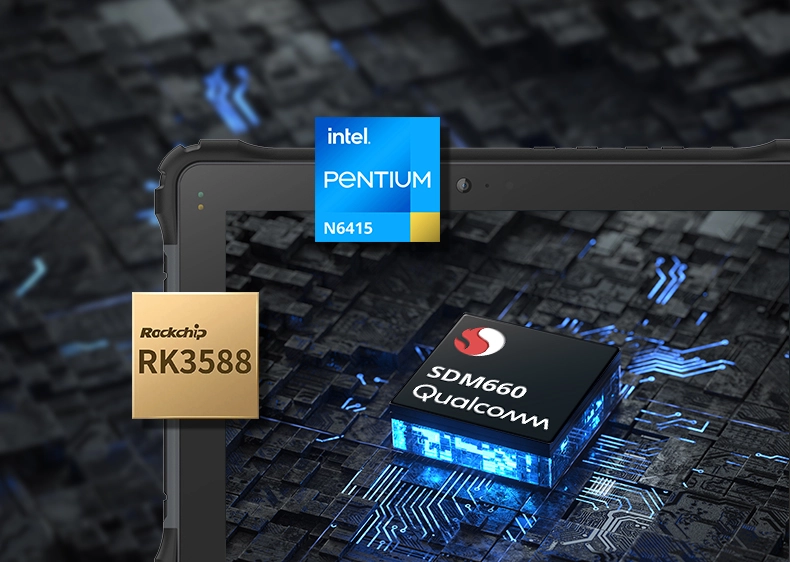

    The MS-100A Rugged Tablet PC is built to excel in any environment, offering a range of powerful processors to meet your specific needs. Choose between the Qualcomm SDM660 Octa-core processor for fast, efficient performance, the RockChip RK3588 with its Quad-core ARM Cortex-A76 and Quad-core ARM Cortex-A55 setup for enhanced power, or the Intel Elkhart Lake Pentium® N6415 processor for demanding industrial applications. Whether it’s for field data collection, logistics management, or real-time communication, the MS-100A delivers. Its 10.1″ high-resolution IPS touchscreen with 1920 x 1200 resolution provides crystal-clear visuals and a responsive interface, making it easy to access and analyze data. With 4GB LPDDR4 RAM and 64GB eMMC storage (upgradable to 6GB RAM and 128GB storage), this tablet is built to handle a wide range of tasks with ease.

  • Rugged Design for Extreme Conditions
    Rugged Design for Extreme Conditions

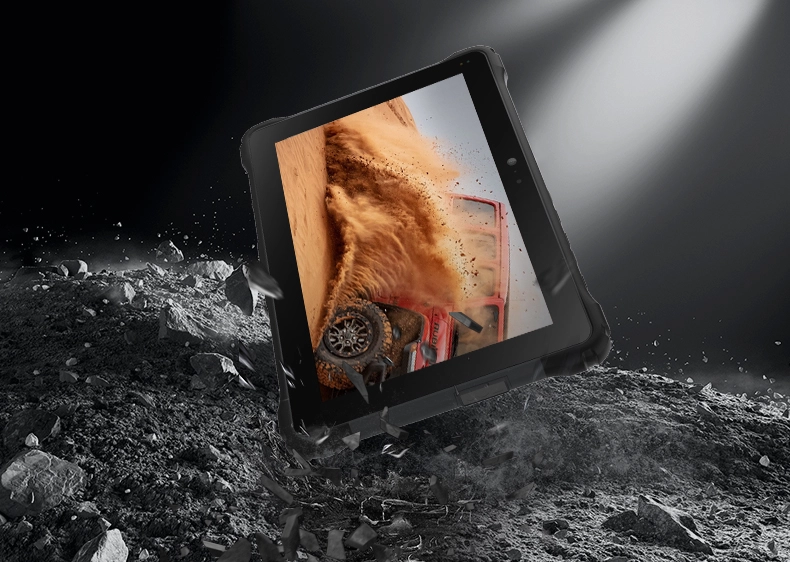

    Built to withstand the toughest environments, the MS-100A is designed with IP67-rated water and dust protection and is MIL-STD-810G compliant, ensuring drop and shock resistance from up to 4 feet. It can handle shocks, vibrations, and extreme temperatures, making it perfect for outdoor use in industries like construction, logistics, and field services. The 350-nit display, with an optional upgrade to 800 nits for sunlight readability, ensures that the screen remains clear even in bright outdoor conditions, making it ideal for professionals in unpredictable environments.

  • Versatile Connectivity and Expansion Modules
    Versatile Connectivity and Expansion Modules

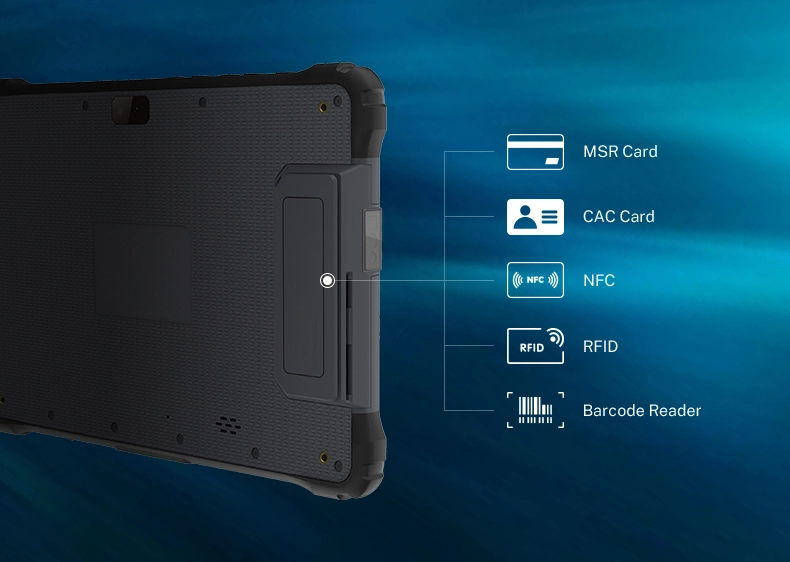

    Stay connected with the latest wireless technology, including Wi-Fi 802.11 a/b/g/n/ac, Bluetooth 5.0, and optional 4G LTE, enabling seamless communication and real-time data transfer in industries like warehousing, logistics, and transportation. The tablet’s Pogo docking connector supports easy integration with optional peripherals such as keyboards and docking stations. Additionally, the MS-100A supports various expansion modules, including NFC, RFID, Barcode Reader, Smart Card Reader, and Rail Magnetic Stripe Reader, offering customizable solutions for industries ranging from retail to manufacturing.

  • Built for Long-Lasting Use
    Built for Long-Lasting Use

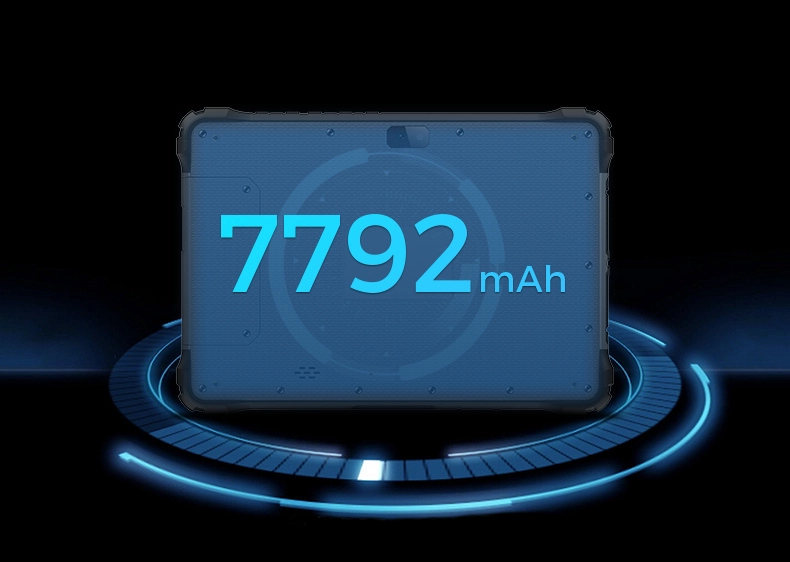

    The MS-100A comes equipped with a powerful 3.85V, 7792mAh battery that provides up to 12 hours of operation, ensuring uninterrupted use throughout long work shifts. Support for Quick Charge 3.0 minimizes downtime, allowing for fast recharging and maximizing productivity across multiple applications, whether it’s for warehouse inventory audits, field inspections, or logistics tracking.

  • Engineered for Harsh Environments
    Engineered for Harsh Environments

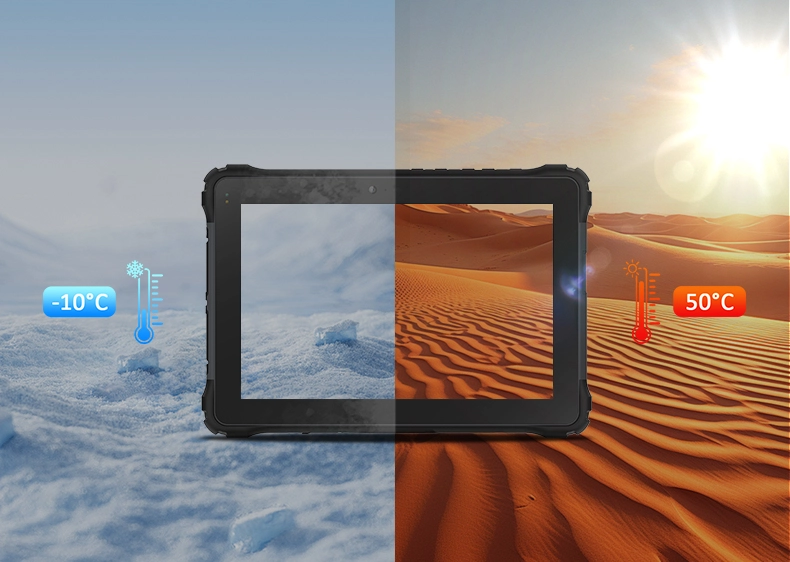

    Designed to thrive in extreme working conditions, the MS-100A can operate in temperatures ranging from -10°C to 50°C and be stored in temperatures between -20°C and 60°C, making it highly reliable in both cold and hot environments. This rugged tablet is the ideal solution for industries requiring durability and consistent performance, whether indoors or outdoors.

Specifications
RUGGEDNESS
SYSTEM
DISPLAY
POWER
Optional Expansion Module
I/O INTERFACE
COMMUNICATIONS
MECHANICAL
ENVIRONMENTAL
REGULATORY
RUGGEDNESS
IP Rating IP67
Drop Rating MIL-STD-810G, 4ft to Concrete
Shock Rating MIL-STD-810G, Method 516.6, Procedure l, 40g 11ms
Vibration Rating MIL-STD-810G, Method 514.6, Procedure l, Category 4
ESD Protection 6kV Touch, 8kV Air
SYSTEM
Processor

Qualcomm SDM660, 64bit Octa-core Qualcomm® KryoTM 260 CPU, 4 x 2.2GHz and 4 x 1.8GHz

Options: (MOQ Required)
RockChip RK3588: Quad-core ARM Cortex A76 & Quad-core ARM Cortex A55 Processor, NPU 6TOPs @int8

Intel® Elkhart Lake: Pentium® Processor N6415, 1.5MB Cache, Up to 3.0GHz

GPU Qualcomm® AdrenoTM 512 GPU
Memory / Storage

4GB LPDDR4 with 64GB eMMC

Optional: 6GB LPDDR4 with 128GB eMMC

OS Android 10
DISPLAY
Screen Size 10.1" IPS LCD
Resolution 1920 x 1200 (16 : 10)
Brightness

350 nits

Optional: 800 nits (Sunlight Readable)

View Angle +/- 80°
Contrast Ratio 800 : 1
Touch Screen

Capacitive 10-Point Multi-Touch
Configurable to Wet and Glove Touch
Ultra Optical Bonding

High Strength Hardened Glass

POWER
AC Adapter

Standard US Plug QC3.0 18W Quick Charge

Optional: Plug Adapter (US AU UK EU)

Battery 3.85V, 7792mAh
Optional Expansion Module

Expansion Slot Options

(Can Support Up to Four Options)

NFC Module: ISO/IEC 14443A/14443B/15693, MIFARE 1K/4K

RFID: 13.56M

Rail Magnetic Stripe Reader

Barcode Reader
Smart Card Reader

I/O INTERFACE
Sensors Gyroscope, Ambient Light Sensor, G-Sensor, Compass
Audio 1 x Built-in Microphone
1 x Internal 8ohm, 1W Speaker
Camera Front Camera: 5MP
Rear Camera: 13MP with Auto Focus, LED
Ports 1 x USB 3.0 Type C, @ 750mA Output
1 x USB 2.0 Type A, @ 500mA
1 x Audio Jack
1 x Expansion Bay
1 x Docking Connector (12V DC Input, 2 x USB 2.0)
1 x Optional SlM /TF Card Slot
Buttons

Power On/Off Button (Hold 10s Will Reset the System)

Volume +/- Button

2 x Programmable Buttons

COMMUNICATIONS
Wi-Fi 802.11 a/b/g/n/ac, Support: 2.4GHz & 5GHz
Bluetooth Bluetooth 5.0
4G LTE

LTE FDD: B2/B4/B5/B7/B12/B13/B17/B25/B26/B66
WCDMA: B2/B4/B5

GSM: 850/1900MHz

GPS GPS, GLONASS, BeiDou
Cold Start No More than 60s
MECHANICAL
Chassis Double Injection Molding with Magnesium-Alloy Chassis, Rubber Protected
Dimensions 270 x 185 x 16 mm
Weight 980g
ENVIRONMENTAL
Operation Temperature -10°C to 50°C
Storage Temperature -20°C to 60°C
Humidity 10% to 95% (Non-condensing)
RoHS Compliant
EMC Test Follows FCC
REGULATORY
Certification FCC, CE, IC, RoHS, RCM
Tablet Regulatory Upon Request
Battery Regulatory UL/UN 38.3
