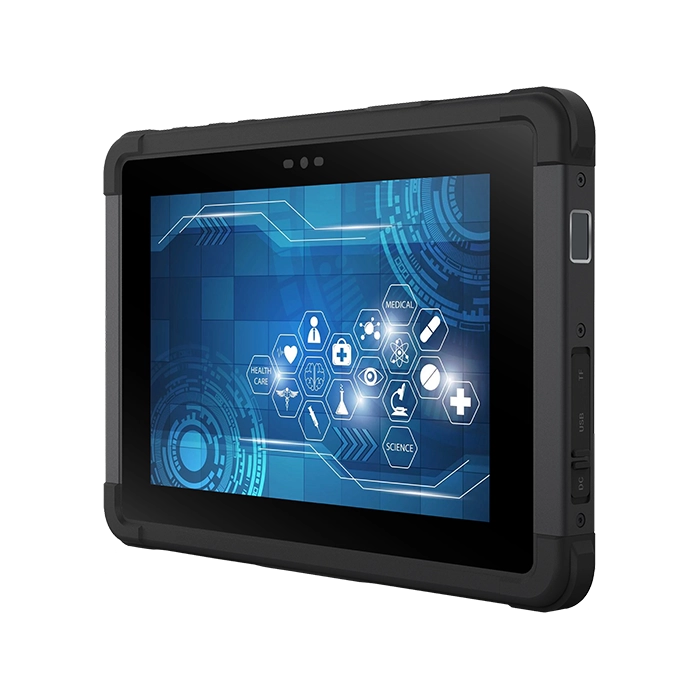

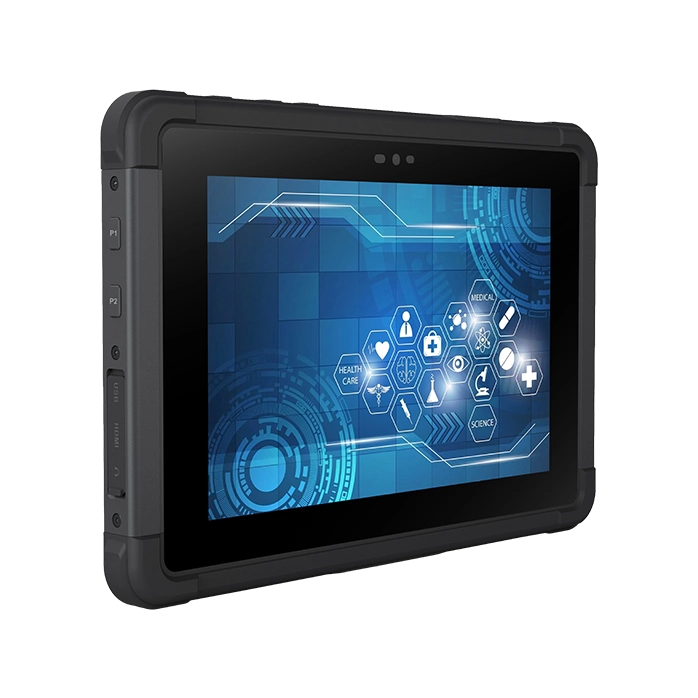

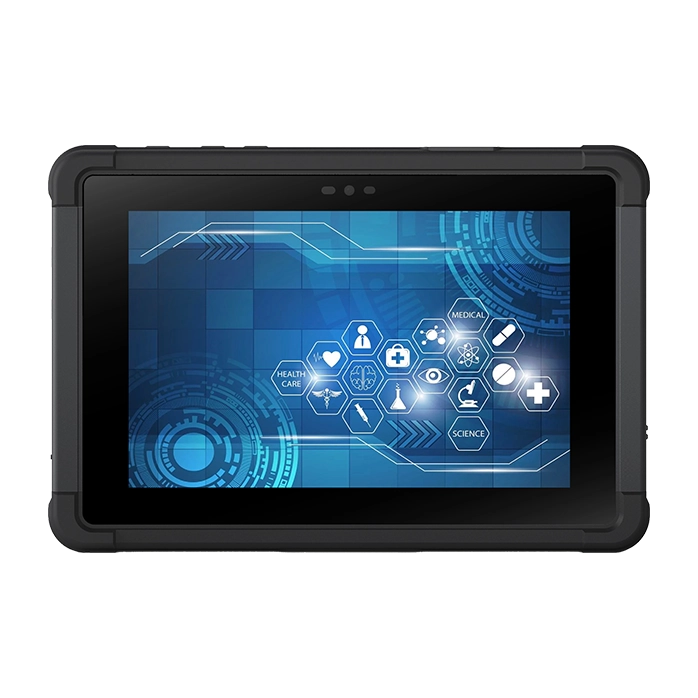

8″ Medical Tablet PC | MJ-80

The MJ-80 Medical Tablet is designed to meet the rigorous demands of healthcare professionals, combining durability with cutting-edge technology. Its 8-inch IPS display (1200×800 resolution) ensures clear, detailed visuals, ideal for viewing patient data, imaging, or medical records. Powered by an octa-core ARM Cortex-A53 processor and running Android 7.1 (upgradable) or Linux OS, the MJ-80 offers reliable performance for critical medical applications. With IP65 water and dust protection, 4 ft drop resistance (MIL-STD-810G), and up to 8 hours of battery life, it is built to withstand the harshest environments, including frequent sanitization. Optional modules like NFC, a barcode reader, and a fingerprint reader streamline patient management and ensure compliance with medical data security. Wi-Fi 5, Bluetooth 4.0, and optional GPS further enhance connectivity, making the MJ-80 an indispensable tool in modern healthcare settings.

Key Features
8'' IPS LCD Screen (1200 x 800 Resolution)
Octa-core ARM Cortex-A53 Processor
Android 7.1 (Upgradable to the Latest Version) or Linux OS
lP65 Water & Dust Protection
4ft Drop / Shock Protection (MIL-STD-810G)
Long Life Battery - Up to 8 Hours Runtime
Wi-Fi 5, Bluetooth 4.0, Optional GPS
Optional Modules: NFC, Barcode Reader, Fingerprint Reader
IEC62133, IEC60601-1
  • Enhanced Performance with Octa-core ARM Cortex-A53 Processor
    Enhanced Performance with Octa-core ARM Cortex-A53 Processor

    The MJ-80 rugged tablet is designed to deliver reliable performance in demanding medical and industrial environments. Powered by an Octa-core ARM Cortex-A53 processor, the MJ-80 ensures seamless multitasking, allowing healthcare professionals and field workers to manage complex tasks efficiently. With 2GB LPDDR3 memory (upgradable to 4GB) and 32GB of eMMC storage (expandable to 64GB), the MJ-80 provides ample processing power for handling essential medical applications and patient data in fast-paced settings.

  • Optimized for Medical and Industrial Use: Android 7.1 or Linux OS
    Optimized for Medical and Industrial Use: Android 7.1 or Linux OS

    Running on Android 7.1 (upgradable) or optional Linux OS, the MJ-80 is optimized for secure and flexible operations, making it the ideal choice for medical facilities and industrial applications. These operating systems enable smooth integration with medical software, real-time data access, and customizable program management, offering an exceptional user experience in any industry.

  • Rugged Durability for Harsh Medical Environments
    Rugged Durability for Harsh Medical Environments

    The MJ-80 is built to endure the harshest environments, with an IP65 rating for protection against water and dust, ensuring durability in healthcare facilities where frequent cleaning and sanitization are required. Its rugged design meets MIL-STD-810G standards, providing resistance to drops from 4 ft, shocks, and vibrations, making it a reliable solution for hospitals, clinics, or fieldwork in rugged conditions.

  • Advanced Touchscreen with Wet and Glove Modes
    Advanced Touchscreen with Wet and Glove Modes

    The MJ-80 features a 10-point capacitive touchscreen engineered for the medical environment, supporting both wet and glove modes to ensure seamless usability in critical situations. Whether medical professionals are wearing gloves or using the device in humid conditions, the MJ-80’s responsive touch technology guarantees reliable performance without interruption. Additionally, the screen is equipped with advanced glass coating options, including anti-reflective, anti-glare, and anti-fingerprint properties. These coatings enhance visibility and ensure a clean display, allowing for optimal performance in any situation.

  • Fast Connectivity with Wi-Fi 5 and Optional GPS
    Fast Connectivity with Wi-Fi 5 and Optional GPS

    Stay connected with Wi-Fi 5 and Bluetooth 4.0, enabling fast and stable wireless communication. The MJ-80 also offers an optional GPS module, ensuring precise tracking and data transfer in remote locations, making it the ideal device for fieldwork and healthcare applications that require reliable real-time updates.

  • Optional Modules for Medical Needs
    Optional Modules for Medical Needs

    The MJ-80 offers unparalleled flexibility with optional modules tailored for the medical industry, including a barcode reader, fingerprint reader, and NFC capabilities. These customizable expansion options enhance the tablet’s functionality, making it well-suited for various healthcare applications such as patient identification, medication management, and inventory tracking. This adaptability ensures that the MJ-80 can meet the specific needs of your medical operations, providing healthcare professionals with the tools necessary to deliver efficient and accurate care.

  • Long-Lasting Battery for Continuous Operations

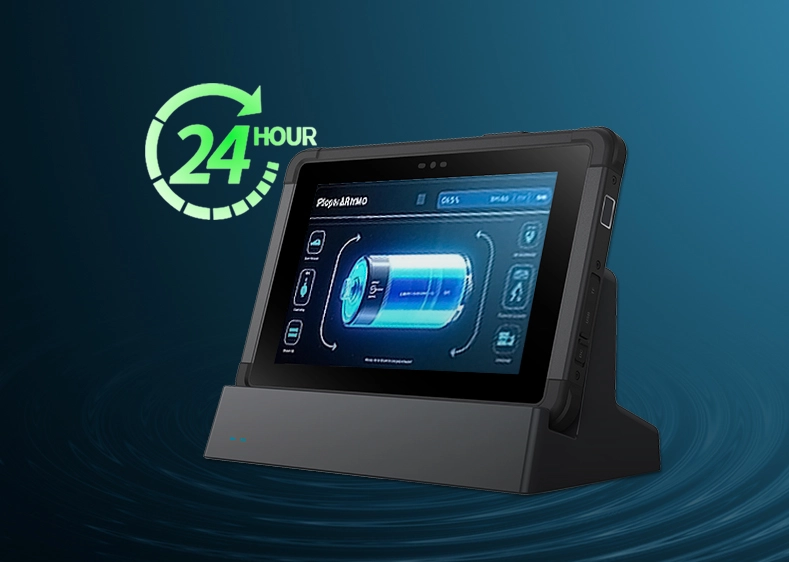

    Long-Lasting Battery for Continuous Operations

    Equipped with a 24Wh Li-ion Polymer battery, the MJ-80 delivers up to 8 hours of continuous use, ensuring minimal downtime in critical operations. Whether you’re managing patient data in a hospital or working on-site, the MJ-80’s long battery life supports uninterrupted productivity throughout the day.

  • Certified for Medical-Grade Performance and Safety
    Certified for Medical-Grade Performance and Safety

    The MJ-80 meets stringent medical and industrial certifications, including IEC 62133 and IEC 60601-1, ensuring compliance with safety and operational standards. Built for reliable performance, this rugged tablet is the perfect solution for medical professionals and industries that demand high-quality, certified equipment.

Specifications
RUGGEDNESS
SYSTEM
DISPLAY
COMMUNICATIONS
POWER
I/O INTERFACE
OPTIONAL MODULES
MECHANICAL
ENVIRONMENTAL
REGULATORY
RUGGEDNESS
IP Rating IP65
Drop Rating MIL-STD-810G, 4ft to Plywood on 26 Corners
Shock Rating MIL-STD-810G, Method 516.8, Procedure l
Vibration Rating MIL-STD-810G, Method 514.6, Procedure l, Category 4, Category20, Category 24
ESD Protection 6kV Touch, 8kV Air
EMC Test Follows FCC
SYSTEM
Processor RockChip RK3368, 1.5GHz, Octa-core Cortex-A53
GPU PowerVR G6110 4K@60fps H.265 HDMI 2.0 with HDCP 2.2
Memory 2GB LPDDR3
Optional: 4GB LPDDR3
Storage 32GB eMMC v5.1
Optional: 64GB eMMC v5.1
OS Android 7.1 (Up Gradable to the Latest Version)
Optional: Linux
DISPLAY
Screen Size 8" IPS LCD
Resolution 1200 x 800
Brightness 300 nits
View Angle +/- 85°
Contrast Ratio 800 : 1
Touch Screen

Capacitive 10-Point Multi-Touch
Chemically Hardened Cover Glass
Glass Coating Optional:

Anti-Reflective, Anti-Glare, Anti-Fingerprint

COMMUNICATIONS
Wi-Fi 802.11 a/b/g/n/ac Dual-Band 2.4GHz & 5GHz
Bluetooth Bluetooth v4.0
GPS (Optional) Tracks Up to 16 Satellites,1575.42MHz
Device GPS Accuracy <15m, 95% Typical
Velocity Accuracy 0.05m/s
Heading Accuracy 0.3 Degrees
Horizontal Position Accuracy<10m
POWER
AC Adapter 110-240V AC Input, 12V DC 3A Output, Standard US Plug
Optional: Medical AC Adapter
Battery 24Wh Battery, Li-on Polymer, 2S1P, 7.4V 3200mAh
I/O INTERFACE
Sensors Gyroscope, Light Sensor, Compass
Audio

1 x Built-in Microphone

1 x Internal 8ohm 1W Speaker

Camera

Front Camera: 2MP

Rear Camera: 8MP with Auto Focus

Ports

1 x USB 2.0, 1 x Micro USB

1 x Micro HDMl Output Type D
1 x Audio Jack

1 x DC Jack
1 x Side - Docking Connector 20-pin
1 x TF Card Slot

Buttons

Power On/Off Button

Volume +/- Button
2 x Programmable Buttons

OPTIONAL MODULES
Modules (Optional) NFC Module: ISO/IEC 14443A/B, 15693/18092
Barcode Reader
Fingerprint Reader
MECHANICAL
Chassis Front: Plastic + TPU Rubber, Rear: Plastic
Dimensions 237 x 159 x 17 mm
Weight 750g
ENVIRONMENTAL
Operation Temperature 0°C to 45°C
Storage Temperature -20°C to 60°C
Humidity 10% to 95% (Non-condensing)
RoHs Compliant
REGULATORY
Certification FCC, IATA, IEC62133, IEC60601-1
