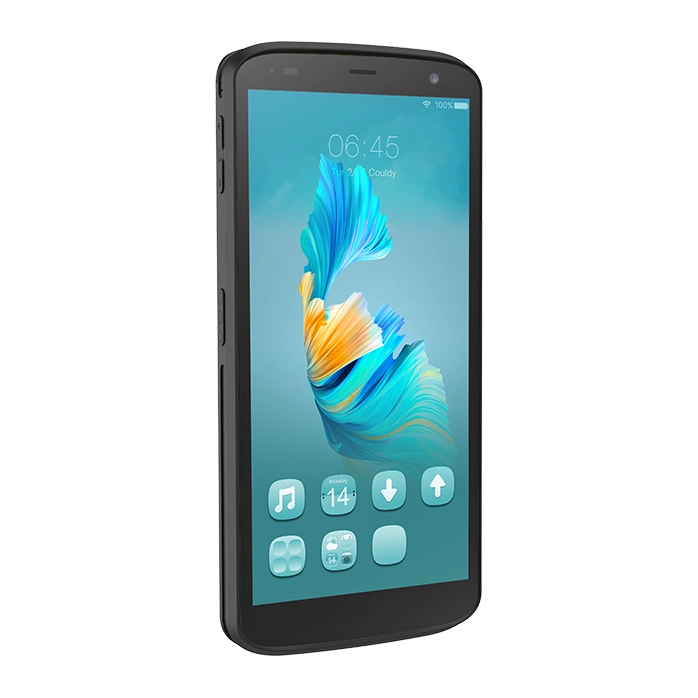

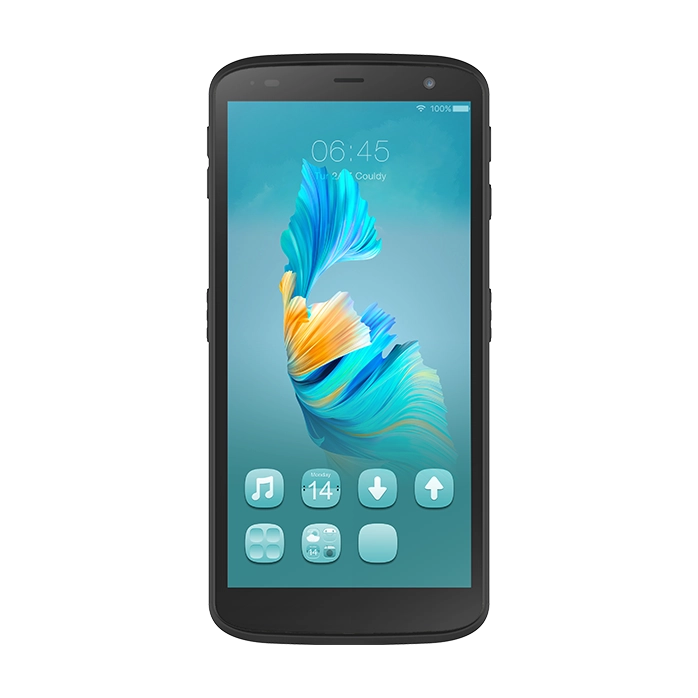

6″ Rugged Handheld | MJ-60

The MJ-60 6″ Rugged Handheld is a powerful, durable device crafted for challenging environments, offering seamless performance and versatile features. Its 6-inch IPS LCD display with 720 x 1440 resolution ensures clear visuals, while the Octa-core ARM Cortex-A53 processor running Android 11 (upgradable) delivers fast, efficient operation for industrial and field applications. With an IP67 rating, it’s water and dust-resistant, built for tough conditions. Connectivity options like Wi-Fi 5 (2.4GHz & 5GHz) and Bluetooth BLE 5.0 ensure reliable communication. The MJ 60 also comes with Pogo Pin connector for expansion, fingerprint authentication for secure access, programmable buttons, NFC (RFID), and an optional barcode reader provide enhanced versatility and security to meet specialized professional requirements.

Key Features
6" IPS LCD Display (720 x 1440 Resolution)
Octa-core ARM Cortex-A53 Processor
Android 11 (Upgradable to the latest version)
IP67 Water & Dust Protection
Wi-Fi 5, Bluetooth 5.0
Programmable Button
Pogo Pin Connector for Expansion
Support Fingerprint, NFC (RFID)
Optional: Barcode Reader
  • High-Performance Processing for Demanding Applications
    High-Performance Processing for Demanding Applications

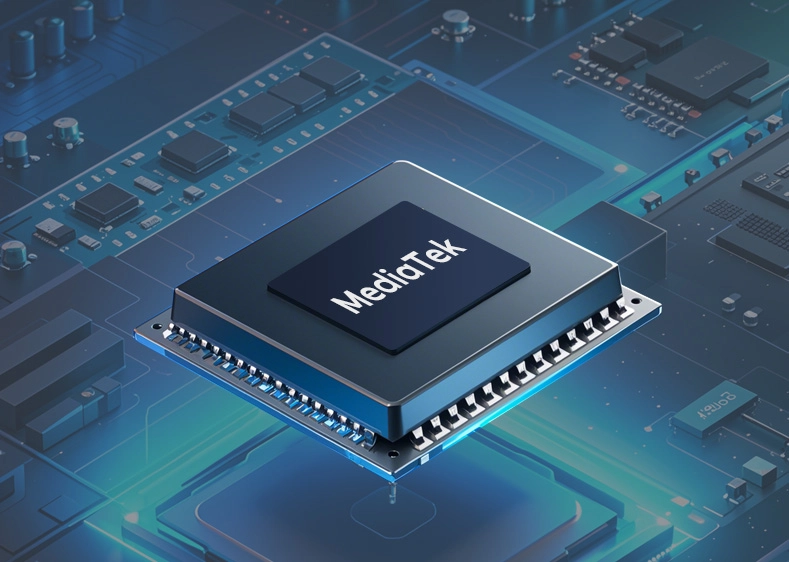

    Powered by the MediaTek MT6765 Octa-core Cortex-A53 processor—featuring four cores at 2.3GHz and another four at 1.8GHz—the MJ-60 Rugged Handheld is built to handle high-demand applications with ease. Perfect for logistics management, inventory control, and field data collection, its processing power ensures smooth and efficient multitasking. Operating on Android 11, which is upgradable for future enhancements, the MJ-60 provides advanced security, improved privacy controls, and optimized app management, delivering a user-friendly and secure experience ideal for professional environments.

  • Superior Durability and Ruggedness
    Superior Durability and Ruggedness

    Built for harsh environments, the MJ-60 Rugged Handheld is equipped with an IP67 rating, providing complete dust protection and water resistance, including brief submersion. It also features 4ft drop resistance to concrete, allowing it to withstand accidental drops in fieldwork or industrial settings. Additionally, with ESD protection of 8KV contact and 15KV air, the MJ-60 resists electrostatic discharge, making it ideal for high-interference environments. This durability ensures dependable performance in challenging conditions, perfect for professionals requiring robust and resilient technology.

  • Exceptional Display Quality
    Exceptional Display Quality

    The MJ-60 Rugged Handheld boasts a 6-inch IPS LCD display with a sharp 720 x 1440 resolution, delivering clear, vibrant visuals. With 450 nits of brightness, the screen remains easily readable even in direct sunlight, making it ideal for outdoor use. Its capacitive multi-touch technology provides fast and responsive touch control, enabling easy navigation of apps and interfaces. The display size and clarity are perfect for professionals needing to view detailed maps, documents, or data in the field, enhancing productivity and usability in demanding environments.

  • Robust Wireless Connectivity

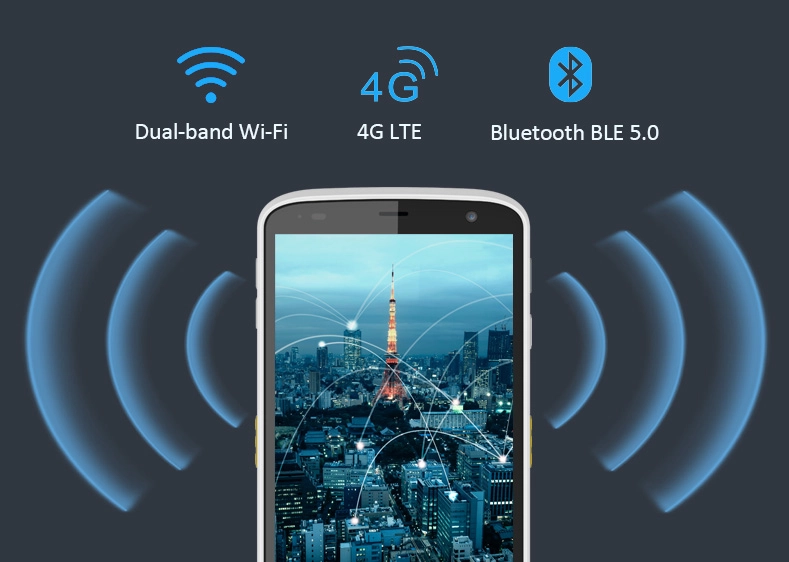

    Robust Wireless Connectivity

    The MJ-60 Rugged Handheld is equipped with dual-band Wi-Fi (2.4GHz and 5GHz), ensuring a stable and fast internet connection for real-time communication, data transfers, and remote updates. With Bluetooth BLE 5.0, it enables efficient, low-energy communication with peripherals like barcode scanners, printers, and headsets. Additionally, its 4G LTE support, covering multiple bands including FDD-LTE and WCDMA, guarantees seamless mobile connectivity in both urban and remote areas. This comprehensive wireless capability makes the MJ-60 an ideal choice for professionals who require reliable connectivity on the go.

  • Enhanced Security with Fingerprint and NFC Capabilities

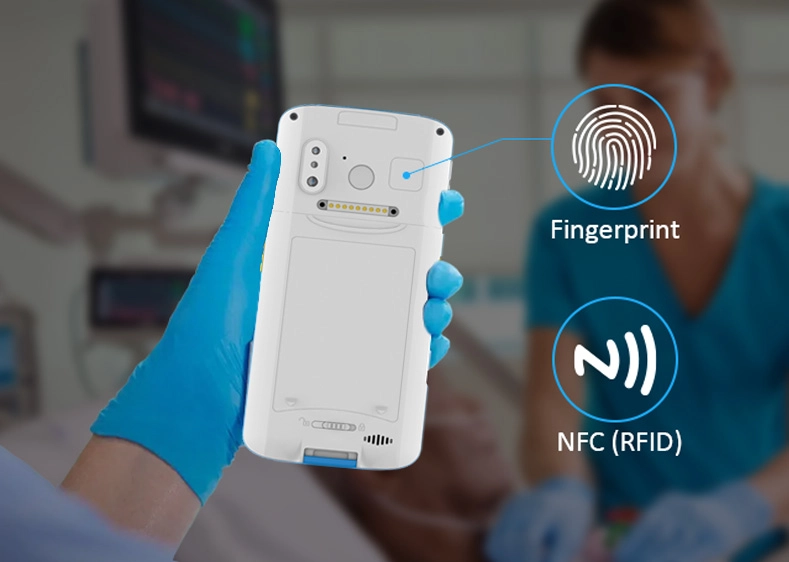

    Enhanced Security with Fingerprint and NFC Capabilities

    The MJ-60 Rugged Handheld offers robust security with integrated fingerprint authentication and NFC (RFID) support for advanced access control. Fingerprint authentication ensures that only authorized users can access the device, providing an extra layer of security for sensitive information, which is especially valuable in industries like healthcare and field services where data protection is critical. The NFC capability adds further versatility, supporting secure mobile payments, access control, and efficient asset tracking. With compatibility for Mifare and Felica Cards as well as P2P Mode, the MJ-60 enables seamless, secure operations, making it a top choice for professionals needing reliable security on the go.

  • Optional 2D Barcode Scanning

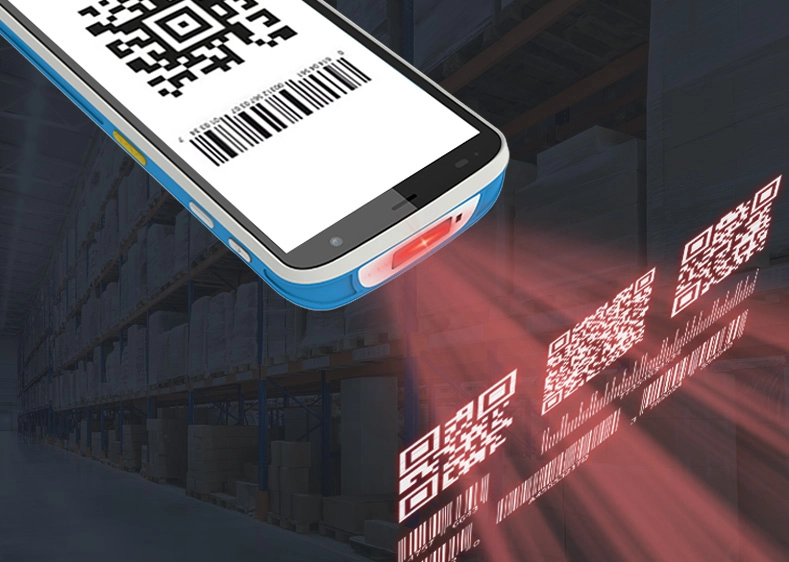

    Optional 2D Barcode Scanning

    The MJ-60 Rugged Handheld offers an optional high-precision 2D barcode scanner designed to streamline tasks across multiple industries. This advanced scanner enables quick and accurate reading of barcodes, QR codes, and other formats, making it ideal for applications in inventory management, logistics, retail, and healthcare. With dedicated scanning buttons on both sides, operators can easily activate the scanner from either hand, enhancing productivity and reducing fatigue during extended use. This optional scanning capability makes the MJ-60 a perfect choice for professionals needing fast, reliable data capture in challenging environments.

  • Expandable with Pogo Pin Connector

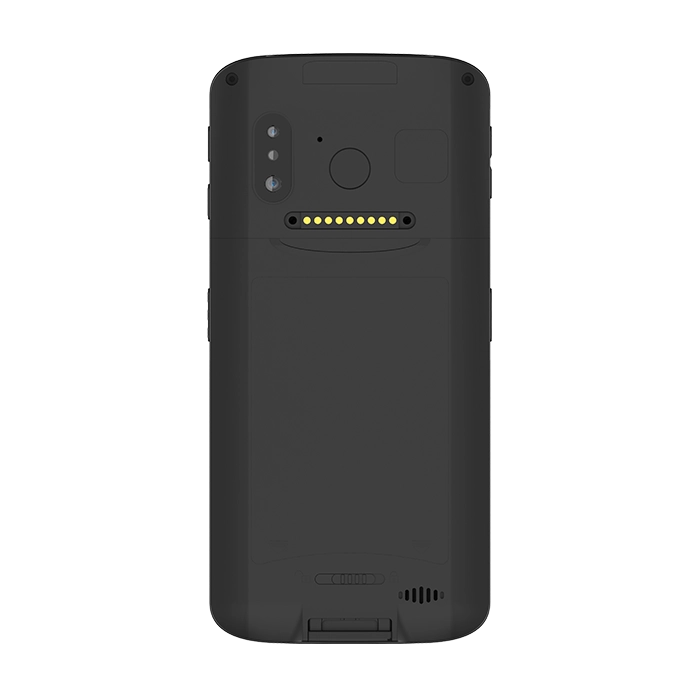

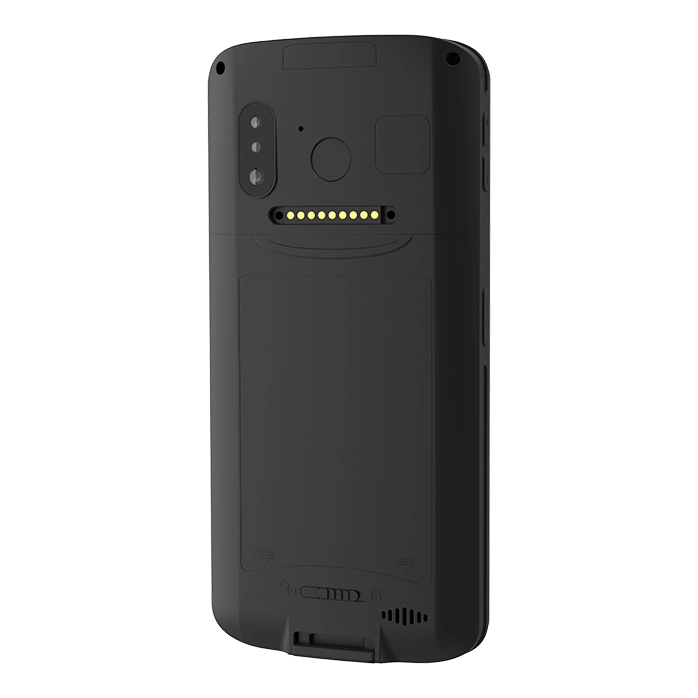

    Expandable with Pogo Pin Connector

    The MJ-60 Rugged Handheld features a Pogo Pin connector, offering seamless integration with a wide range of accessories and expansion modules. This connector enables users to quickly attach add-ons, such as docking stations, extended battery packs, or other modules, enhancing the device’s functionality without the need for cables or complex setup. Ideal for professionals needing versatile, field-ready solutions, the Pogo Pin connector empowers users to customize their MJ-60 to meet specific operational needs, ensuring adaptability and efficiency in various work environments.

Specifications
RUGGEDNESS
SYSTEM
DISPLAY
COMMUNICATIONS
POWER
I/O INTERFACE
MECHANICAL
ENVIRONMENTAL
REGULATORY
RUGGEDNESS
IP Rating IP67
Drop Rating 4ft to Concrete
ESD Protection 8kV Contact, 15kV Air
SYSTEM
Processor MediaTek MT6765 (Octa-core Cortex-A53, 4 x 2.3GHz + 4 x 1.8GHz)
GPU ARM Mali-G72
Memory / Storage 4GB + 64GB
Optional:
3GB + 32GB
6GB +128GB
OS Android 11
DISPLAY
Screen Size 6" IPS LCD
Resolution 720 x 1440
Brightness 450 nits
Touch Screen Capacitive Multi-Touch
COMMUNICATIONS
Wi-Fi 802.11 a/b/g/n/ac, Dual-Band 2.4GHz & 5GHz
Bluetooth Bluetooth BLE 5.0
GPS GPS, GLONASS, BeiDou
4G LTE

FDD-LTE (B1/B2/B3/B5/B7/B8/B20)
WCDMA (B1/B2/B5/B8)

TD-SCDMA (B34/B39)

GSM/EDGE/GPRS (850M/900M/1800M/1900M)

NFC (RFID) Reader Mode, Support ISO 14443A/B, ISO 15693
Support Mifare Card, Felica Card
Support P2P Mode, Card Emulation Mode
POWER
AC Adapter Standard Type-C Adapter
Battery 3.85V, 4450mAh Lithium-lon Battery
Wireless Charger QI 15W
I/O INTERFACE
Sensors Accelerometer, Gyroscope, Light Sensor
Audio 2 x Built-in Microphone
1 x 8ohm, 1.2W Speaker
Camera Front Camera: 5MP
Rear Camera: 16MP with Flash LED
Port 1 x USB-C for Battery Charging
Buttons 2 x 2D Scanning Buttons (Left and Right)
1 x Programmable Button
Volume +/- Button
Power On/Off Button
Pogo Pin Support 1 x UART, 1 x USB, 1 x DC INPUT
2D Barcode Scanner Optional
Fingerprint Support
MECHANICAL
Chassis Plastic Chassis
Dimensions 165.8 x 78.8 x 14.6 mm
Weight 280g
ENVIRONMENTAL
Operation Temperature 0°C to 45°C
Storage Temperature -20°C to 60°C
Humidity 10% to 95% (Non-condensing)
REGULATORY
Certification FCC, CE, UN38.3
