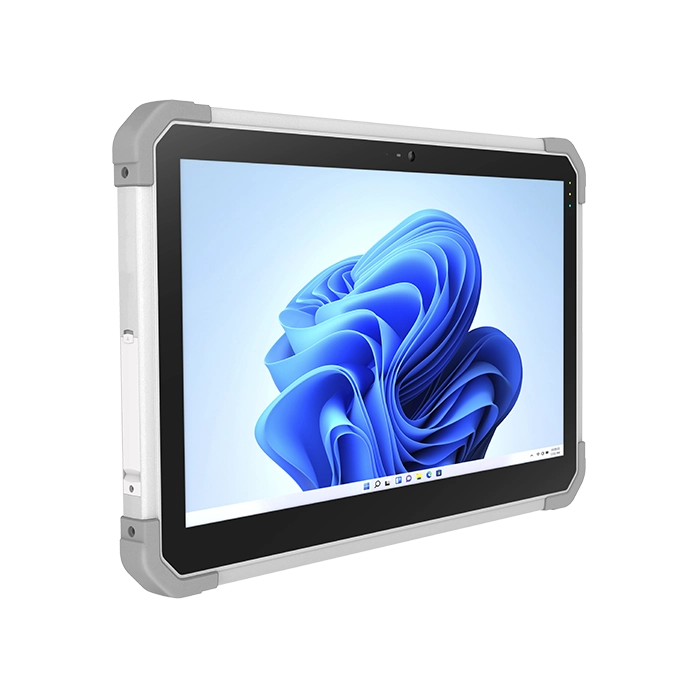

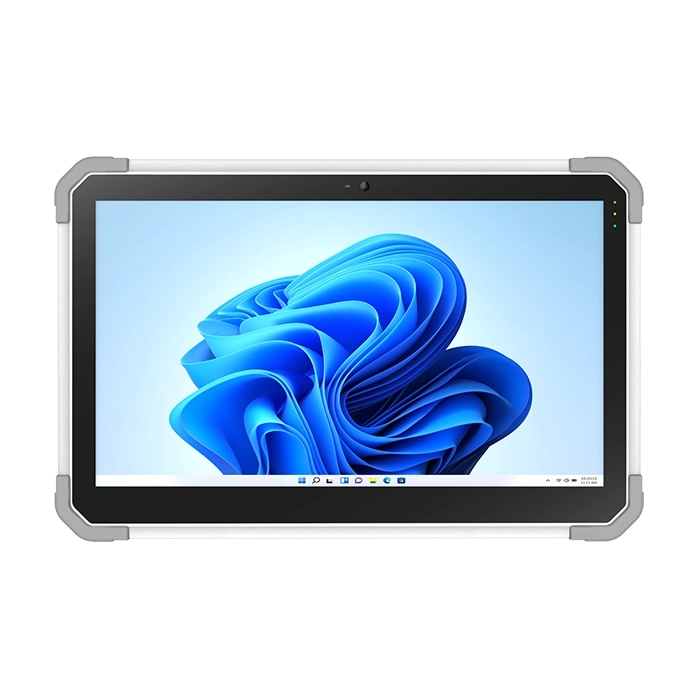

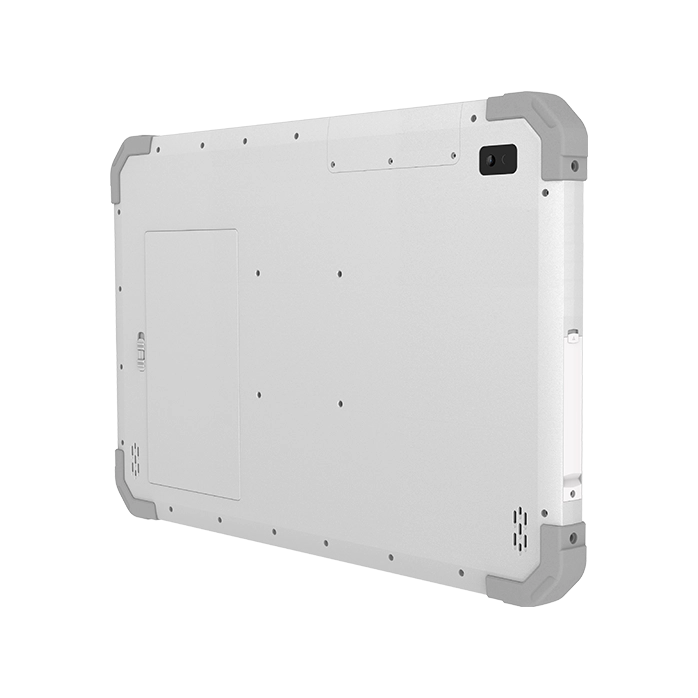

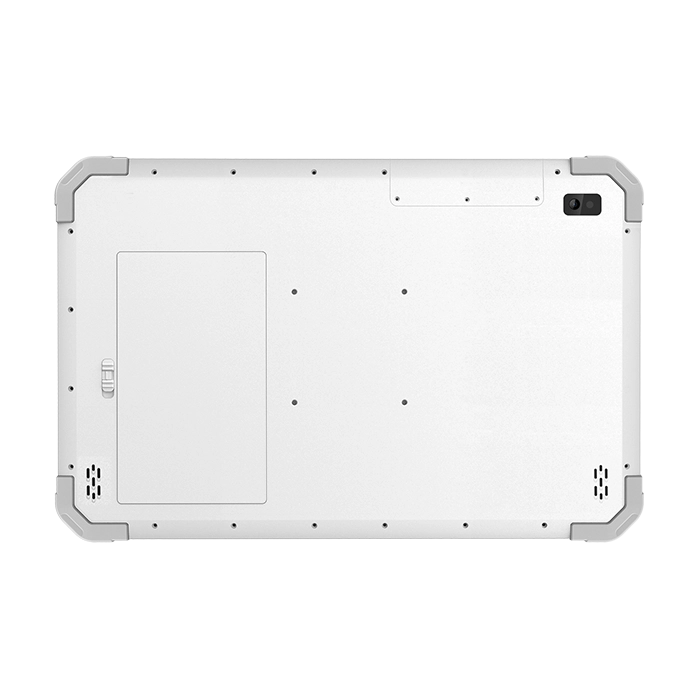

15.6″ Rugged Medical Grade Windows Tablet PC | MD-150

The medical grade tablet PC MD-150 combines exceptional performance with high reliability, featuring a bright 15.6″ high resolution touch screen, powerful Intel core i5/i7 processors, and a rugged design, all backed by medical IEC 60601-1 certification. Its IP54 waterproof and protective rubber edges make it suit tough medical environment, such as surgery room, ambulance, medical carts, and mobile medical imaging system.

Key Features
15.6" IPS LCD Screen (1920 x 1080 Resolution)
11th Gen Intel Tiger Lake i5 or i7 Processor
Windows 11 Pro OS
IP54 Water & Dust Protection
66.3Wh High-Capacity Battery
3ft Drop / Shock Protection (MIL-STD-810G)
Hot Swappable Battery
  • Unmatched Performance with 11th Gen Intel Tiger Lake Processors
    Unmatched Performance with 11th Gen Intel Tiger Lake Processors

    Experience unmatched speed and efficiency with the MD-150, featuring the latest Intel 11th Gen Tiger Lake processors. Available in both i5 and i7 configurations, these processors deliver outstanding performance for managing medical records and applications. Coupled with 8GB or 16GB LPDDR4X RAM and up to 1TB of internal Gen 4 PCIe SSD storage, the MD-150 ensures seamless operations and peak reliability in demanding medical environments. Its 15.6″ screen offers the perfect blend of mobility and productivity, catering to healthcare professionals’ needs.

  • Versatile Operating Systems: Windows 11 Pro & Linux
    Versatile Operating Systems: Windows 11 Pro & Linux

    Customize your operating environment with the choice of Windows 11 Pro or Linux OS. Our systems offer flexibility to suit diverse medical software requirements, ensuring seamless integration and compatibility. Whether you prefer the latest Windows features or the robustness of Linux, we provide solutions that align with your operational goals.

  • Rugged and Reliable
    Rugged and Reliable

    Built to withstand the toughest medical environments, the MD-150 boasts IP54 water and dust protection, 3ft drop protection, and compliance with MIL-STD-810G standards for shock and vibration resistance. Its chemically hardened glass and protective rubber edges ensure lasting durability, even in high-risk areas like surgery rooms and emergency settings.

  • Auto-Sensing Touch Technology, Wet and Glove
    Auto-Sensing Touch Technology, Wet and Glove

    The MD-150 is tailored for the medical industry, where users frequently wear gloves or have wet hands. Our auto-sensing touch technology ensures effective touch response, eliminating the hassle of removing gloves or struggling with non-responsive screens.

  • Advanced Connectivity Options
    Advanced Connectivity Options

    Stay connected with state-of-the-art technology, including Intel AX210 Wi-Fi 6E and Bluetooth 5.2. For uninterrupted data transfer, opt for the 4G LTE option, ensuring reliable and continuous communication that supports efficient medical operations.

  • Extended Uptime with Dual Battery System
    Extended Uptime with Dual Battery System

    Maximize productivity with the MD-150’s innovative dual battery system. Featuring one internal and one hot-swappable battery, this design allows for continuous use, even during battery swaps, minimizing downtime and enhancing operational efficiency.

  • Certified for Medical-Grade Safety and Electromagnetic Compatibility
    Certified for Medical-Grade Safety and Electromagnetic Compatibility

    Rely on our commitment to quality with certifications for medical-grade safety and electromagnetic compatibility. The MD-150 adheres to stringent industry standards, ensuring safety, reliability, and compliance in medical environments.

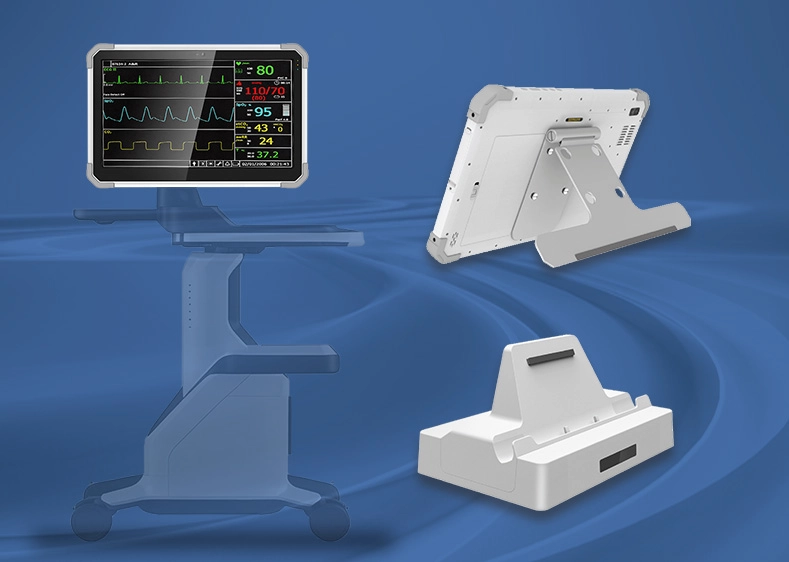

  • Accessories
    Accessories

    The MD-150 also comes with a bunch of accessories that complement the ease of use. Check them out below: Docking Station, Kickstand, VESA Mount to Medical Cart.

Specifications
RUGGEDNESS
SYSTEM
DISPLAY
COMMUNICATIONS
POWER
I/O INTERFACE
MECHANICAL
ENVIRONMENTAL
REGULATORY
RUGGEDNESS
IP Rating IP54
Drop Rating 3ft to Marble, Only 4 Corners, Front Side
Shock Rating MIL-STD-810G-2014, Method 516.6, Procedure l, 40g
Vibration Rating MIL-STD-810G-2014, Method 514.6, Program l
ESD Protection 8KV Contact, 15KV Air
SYSTEM
Processor

Intel® CoreTM i5-1135G7 Processor, 4 Cores, 8 Threads, 8MB Intel® Smart Cache,

2.4GHz Base Frequency, 4.2GHz Max Turbo Frequency

Optional: Intel® CoreTM i7-1165G7 Processor

GPU Intel® lris® Xe Graphics, Max Frequency 1.3GHz
Memory 8GB LPDDR4X
Optional: 16GB LPDDR4X
Storage PCle Gen 4 SSD, 256GB (Up to 1TB)
OS Windows 11 Pro 64bit
Optional: Linux
Security TPM 2.0
DISPLAY
Screen Size 15.6" IPS LCD
Resolution 1920 x 1080 (16 :9)
Brightness 300 nits
View Angle +/- 85°
Contrast Ratio 800 : 1
Touch Screen

Capacitive 10-Point Multi-Touch
Auto-sensing, Configurable to Wet and Glove Touch

Chemically Hardened Glass

Supports Windows-certified Digital Pen

Optional: AG/AF Coating

COMMUNICATIONS
Wi-Fi Intel AX 210, Support WiFi 6E, 802.11 a/b/g/n/ac/ax 2.4G & 5G
Bluetooth Bluetooth 5.2
4G LTE (Optional) 4G LTE Module with M.2 Interface
GPS UBlox NEO-M10, GPS L1C/A, SBAS L1C/A, QZSS L1C/A,
GLONASS L1OF, BeiDou B1, Galileo E1B/C
POWER
AC Adapter

100-240V AC Input, 19V/3.42A DC Output, Standard US Plug, Medical AC Adapter,

Optional: Multi-National AC Plugs

Battery

Hot-swappable 3S1P Li-ion 11.4V DC @ 5820mAh - 66.348Wh

Internal Battery: 6.66Wh 600mAh 11.1V

I/O INTERFACE
Sensors Ambient Light Sensor, G-Sensor
Audio

1 x Built-in Microphone

2 x 4ohm, 1.5W speakers

Camera

Front Camera: 2MP

Rear Camera: 5MP with LED Flash

Ports

1 x USB 3.0 Type C (Only Support USB 3.1 and Display)

1 x USB 3.0 Type A

1 x USB 2.0 Type A

1 x 1000M RJ45 Port

1 x Nano SlM Slot (Internal)

1 x Audio Jack

1 x DC Jack

1 x Docking Connector (1 x 37pin, 19V DC Input, 1 x USB 3.0, HDMI Output)

Buttons

Power On/Off Button

Volume +/- Button

2 x Programmable Buttons

MECHANICAL
Chassis Front: Plastic, Rear: Aluminum, Footpad: LSR
LED

1 x Charge Indicator

1 x Power Indicator

1 x SSD Indicator

Dimensions 402.8 x 262.6 x 23.13 mm
Weight 2.2Kg
Thermal Fanless Design
Mounting 75 x 75mm VESA Mount, M4 Screw
ENVIRONMENTAL
Operation Temperature -10°C to 40°C
Storage Temperature -20°C to 60°C
Humidity 1% to 95% Non-condensing, -20°C to 60°C
Thermal Shock -20°C to 60°C Within 5 Minutes, Non-operating
REGULATORY
Certification FCC, CE, RoHS, IEC 60601-1, IEC 60601-1-2
Battery IATA, UN38.3, IEC 62133
