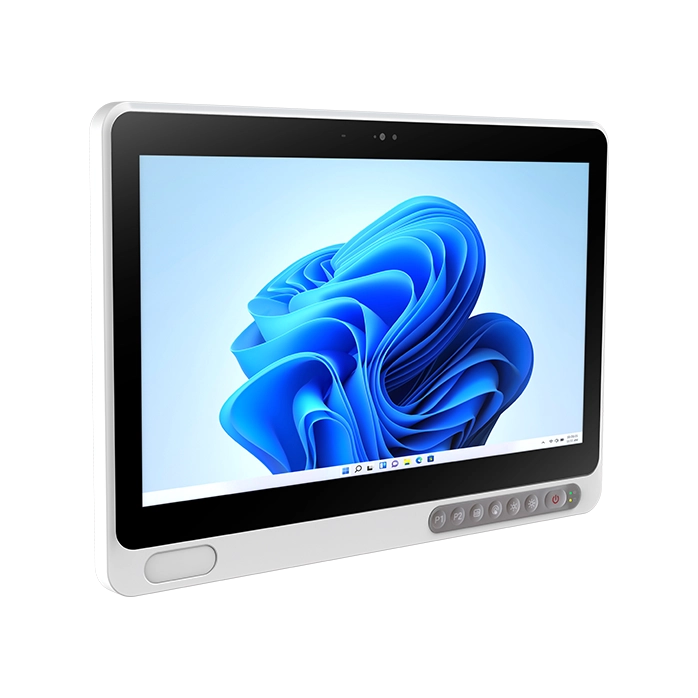

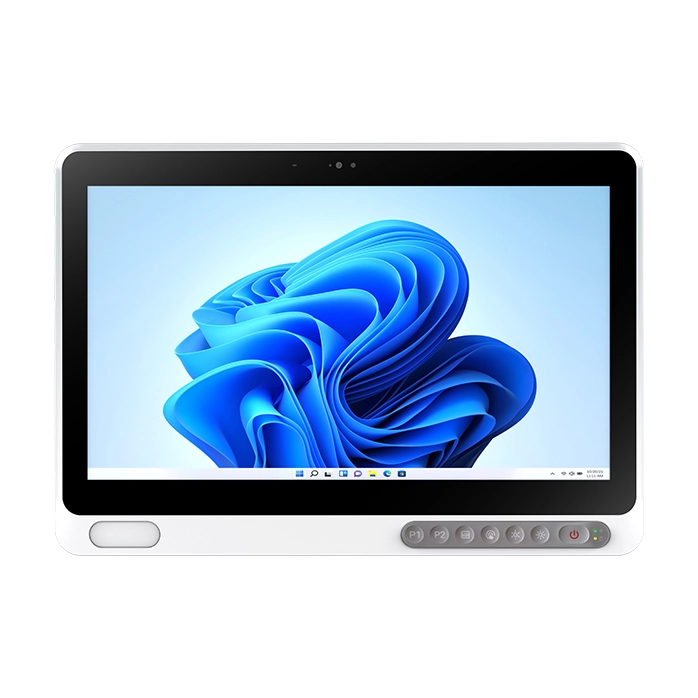

Sometimes, the needs of hospitals, healthcare facilities, and surgical facilities go beyond what a tablet PC can provide. Meet Estone Technology’s EM-2100, a large format all-in-one panel PC designed expressly for medical and healthcare situations. The touchpanel PC can be easily mounted on all types of medical computer carts, armatures, or wall mounts, and features plenty of tools and connections to do all types of supporting functions.

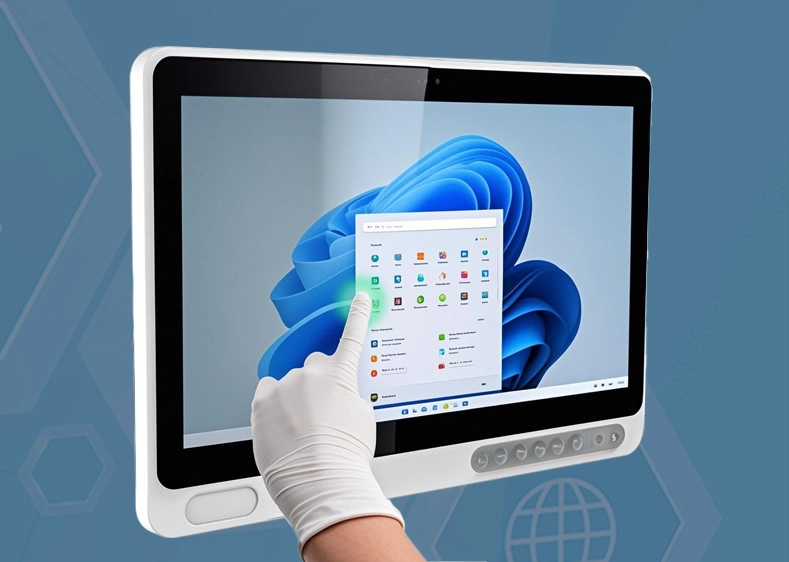

The EM-2100 is designed for the medical industry, where users are always wearing gloves or constantly washing their hands. Our auto-sensing touch technology can help prevent the frustration that can happen when hands aren’t dry enough for a conventional touch screen or the annoyance of taking off gloves, only to put them back on after use.

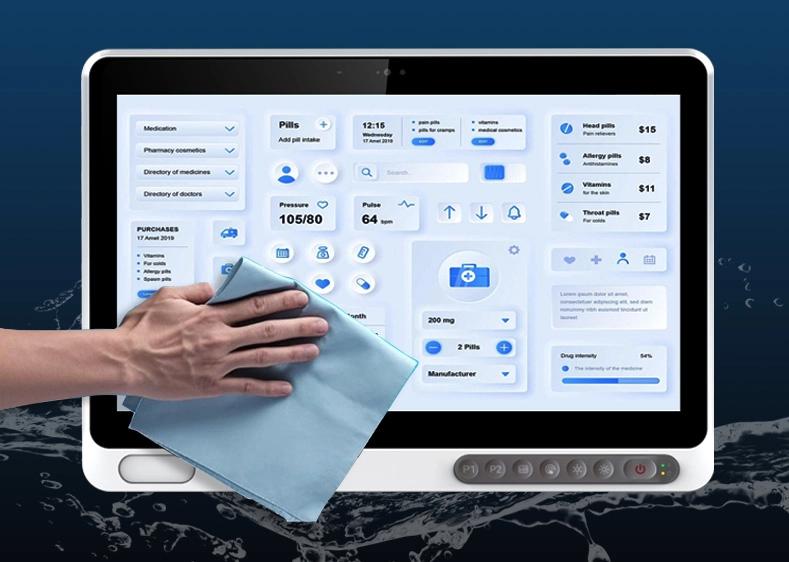

Avoiding the spread of contaminants is important in any medical setting. The EM-2100 can be easily cleaned and sanitized with it’s anti-microbial chassis and IP65 rated front panel allowing you to feel confident that even when using it with your gloves on, sanitation is not an issue.

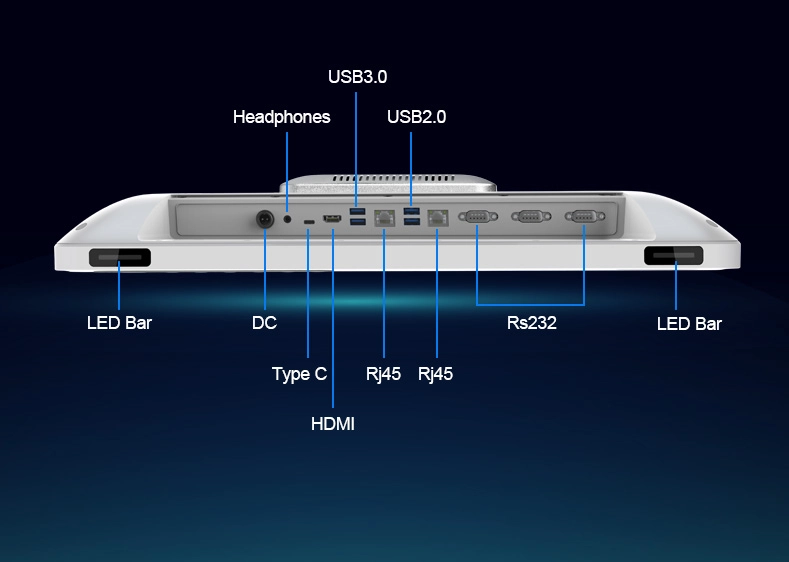

The EM-2100 has been specially designed to work with a wide variety of medical equipment and tools. The unit comes standard with a wide array of inputs, like USB and RJ-45 Ethernet ports. Additional, medically isolated ports in USB, RJ-45, RS-232, and even isolated DC Outs are available to support sensitive medical equipment and scanning devices. This allows the EM-2100 Medical Panel PC to be utilized for almost any purpose.

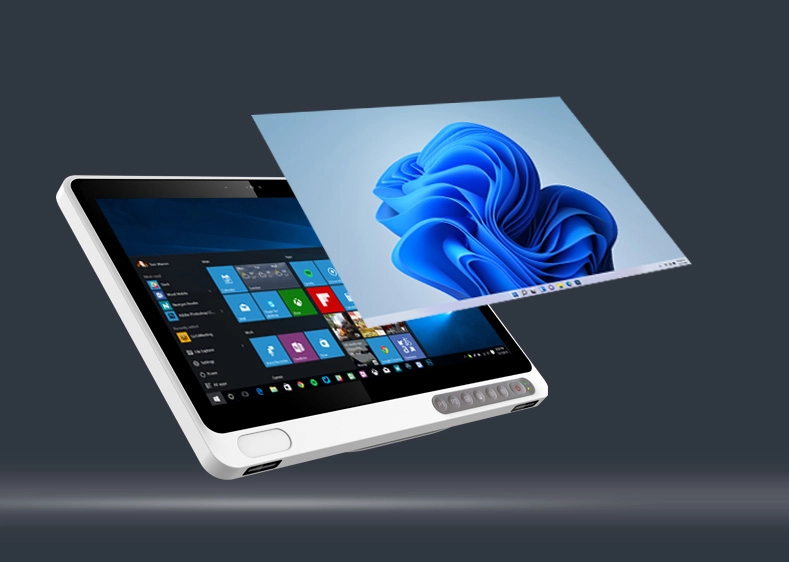

With the latest hardware, you need the latest OS and we have it on the EM-2100. The EM-2100 is available with Windows 11, Windows 10 or it can be customized with a distribution of the Linux Operating System.

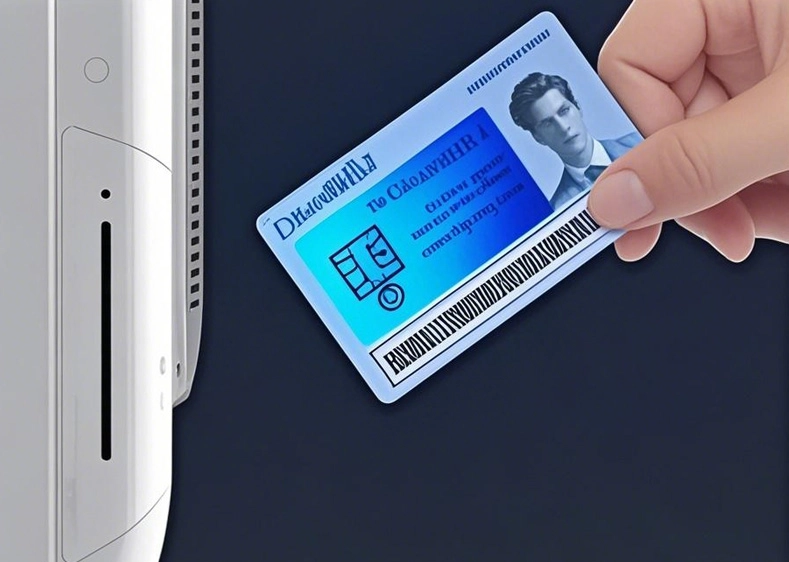

Hospital computer systems have to be used by a lot of different people – they also have to be extremely secure. Requiring that individuals continuously log in and out of systems is both a time sink and an opportunity for passwords to be lost or stolen. The EM-2100 Medical Panel PC supports an integrated Smart Card reader as an option for easy and secure personnel logins. Just insert a CAC (EMV) enabled card into the security slot to log into the system and enable specific functions.

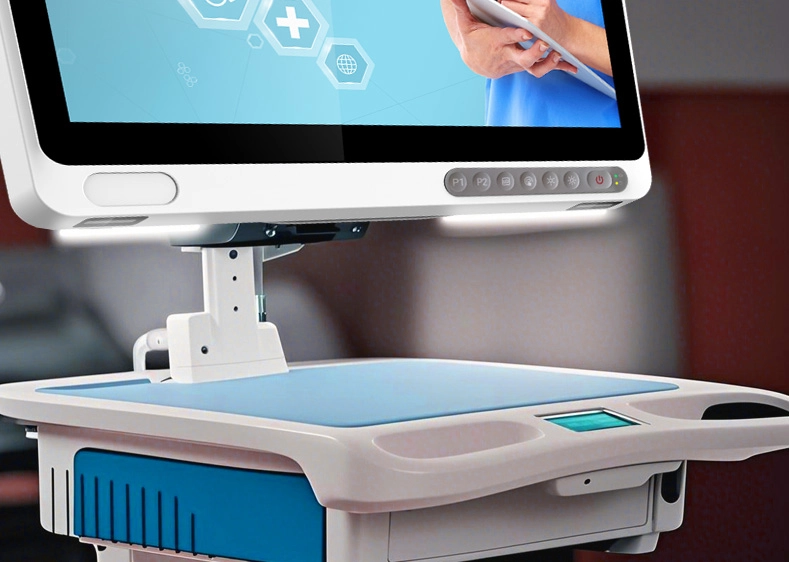

We designed this Medical Panel PC to go anywhere, and serve any function, and that means thinking of the special extras. The panel features twin bright, built-in reading lights to illuminate tools and charts on a medical cart, or just a magazine in a patient bed. We’ve also included an available medically isolated DC out, to help support any tool that may need to be used.
| IP Rating | IP65 - Front Panel, lP54 - Rear Chassis |
| ESD Protection | 8kV Touch, 15kV Air |
| Processor |
Intel 11th Gen Tiger Lake i5-1145GRE, Base 1.5GHz, Burst 4.1GHz, 8MB Smart Cache Optional: Intel 11th Gen Tiger Lake i7-1185G7E, Base 1.8GHz, Burst 4.4GHz, 12MB Smart Cache |
| GPU | Intel® lris® Xe Graphics, Max Frequency to 1.35GHz |
| Memory |
16GB LPDDR4 Optional: 32GB LPDDR4 |
| Storage |
256GB PCle Gen 4 SSD Optional: 512GB, 1TB |
| OS |
Windows 11 Pro 64bit Optional: Windows 10 Pro/LTSB 64bit, Linux |
| Security | Intel AES New Instructions, TPM 2.0, Intel vPro |
| Screen Size | 21.5" IPS LCD |
| Resolution | 1920 x 1080 |
| Brightness |
250 nits Optional: 500 nits |
| View Angle | +/- 85° |
| Contrast Ratio | 1000 : 1 |
| Touch Screen | Capacitive 10-Point Multi-Touch Auto-Sensing, Configurable to Wet & Gloved Touch Ultra Optical Bonding Chemically Hardened Glass User Replaceable Anti-Glare Film |
| Ethernet | 2 x RJ45 10/100/1000M Ports |
| Wi-Fi | Intel® Wi-Fi6 AX210, 802.11 a/b/q/n/ac/ax 2.4G & 5G |
| Bluetooth | Bluetooth 5.2 |
| AC Adapter |
110-240V AC Input, 19V DC 7.9A Output, Standard US Plug Optional: Multi-National AC Plugs, Medical AC Adapter |
| Battery |
Dual Hot-Swappable Batteries 10.95V 11000mAh, 120.45Wh Each Battery |
| Sensors | Ambient Light Sensor |
| Audio | 2 x Built-in Microphone 2 x 4ohm, 3W Speaker 1 x 3.5mm Audio Jack |
| Camera |
Front Camera: 2MP, Optional 5MP with Auto Focus Windows Hello 2MP Camera |
| Ports |
1 x USB 3.0 Type C 2 x USB 3.0 Type A 4 x USB 2.0 Type A |
| Buttons |
Power On/Off Button |
| Smart Card Reader |
Optional, EMV 2000 Level 1, ISO 7816, CCID |
| Chassis | Aluminum-Front Chassis, Plastic-Rear Chassis Optional: Anti-Microbial Medical Chassis |
| Dimensions | 540 x 378 x 64 mm |
| Weight | 11.2Kg |
| Mounting | 100 x 100mm, 75 x 75mm, M4 Screw |
| LED |
2 x Reading Light Bar 1 x Power 1 x HDD |
| Operation Temperature | 0°C to 40°C |
| Storage Temperature | -20°C to 60°C |
| Humidity | 10% to 95% (Non-condensing) |
| Certification | FCC, CE, IEC60601-1, IEC60601-1-2 |
| Battery | CE, UN38.3, IATA |
