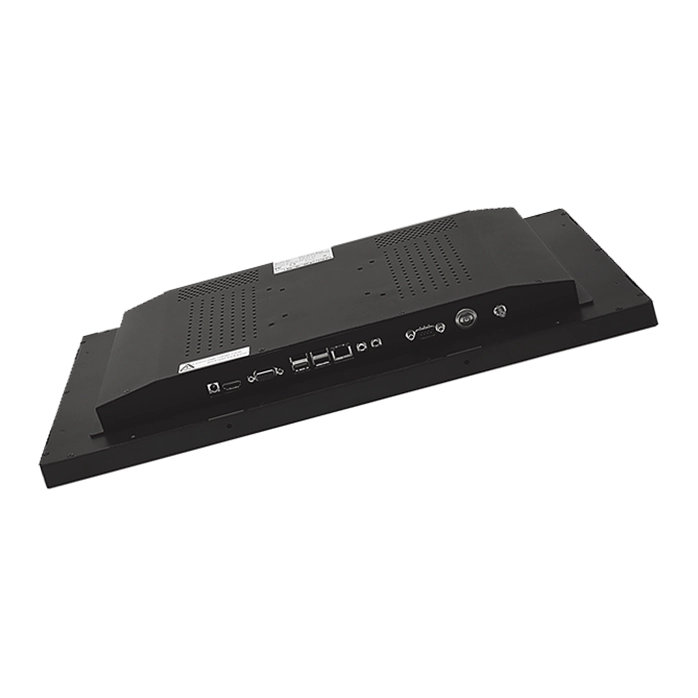

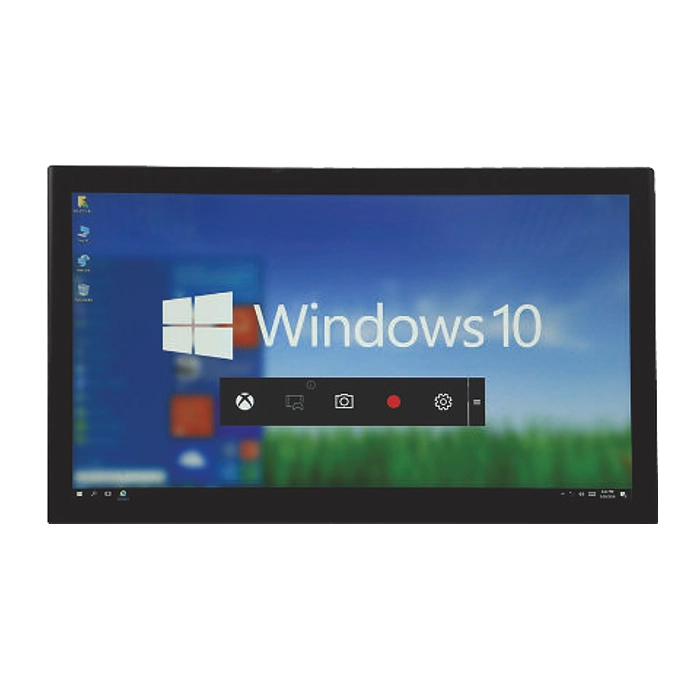

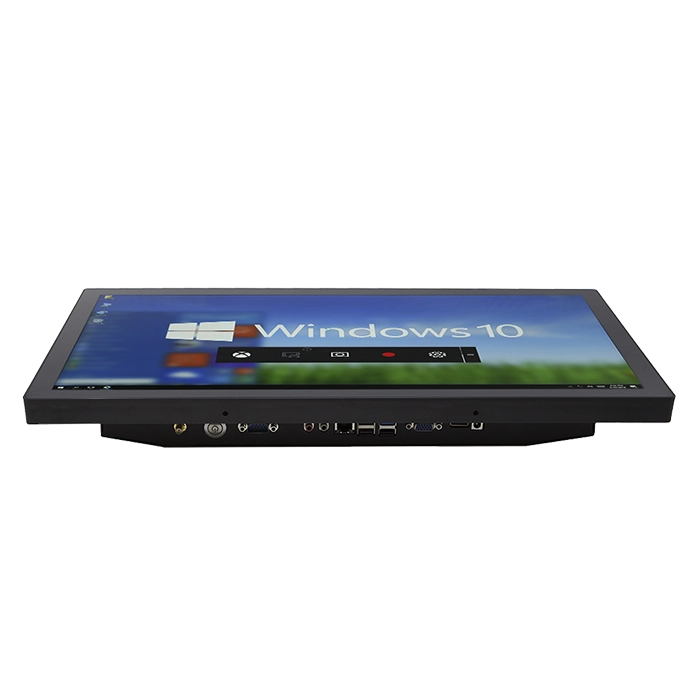

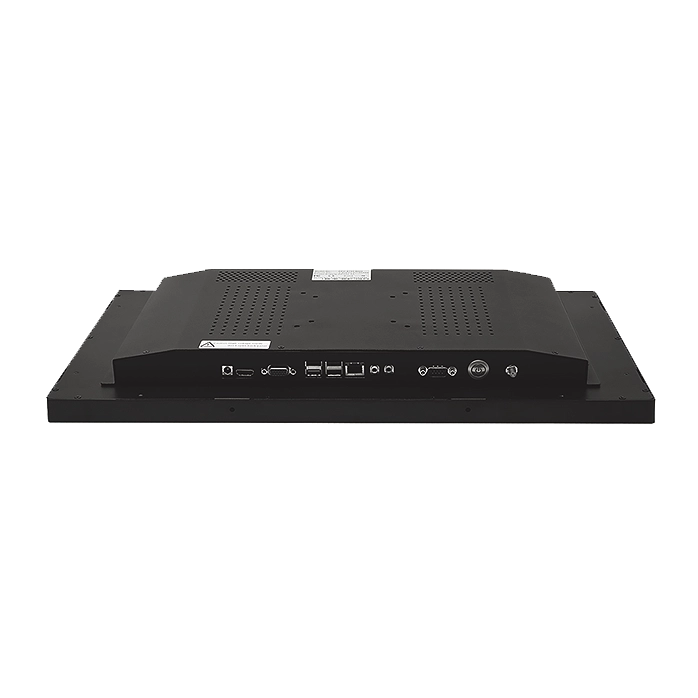

21.5″ Industrial Panel PC | PPC-6721
The PPC-6721 is a 21.5” all-in-one industrial panel PC with a 1920 x 1080 touch screen. The system is based on an Intel Celeron J1900 processor. The system has mini-PCIe slots for WiFi, mSATA, and up to two Intel Gigabit Ethernet ports. This panel PC is designed for applications like digital signage, video conferencing, vending machines, and interactive IoT.
Key Features
Intel Skylake Core i5-10210U Processor
Gigabit Ethernet Ports and WiFi 6
21.5" LCD Panel with Projected Capacitive Touch Screen
RS232, USB and Customizable l/O for Communication
Support Windows 10, Windows 11 and Linux
Specifications
RUGGEDNESS
SYSTEM
DISPLAY
COMMUNICATIONS
POWER
I/O INTERFACE
MECHANICAL
ENVIRONMENTAL
RUGGEDNESS
| Protection | Front Panel IP65 Compliant |
SYSTEM
| Processor | Intel Core i5-10120U (1.6GHz) |
| Platform | Intel Comet Lake |
| Memory | 8GB DDR4 |
| Storage | 1 x M.2 SATA Slot 256GB SSD |
| OS | Support Windows 10, Windows 11, Linux |
DISPLAY
| Screen Size | 21.5" TFT Active Matrix LED Backlight |
| Resolution | 1920 x 1080 |
| Brightness | 300 nits |
| View Angle | 89° (Left), 89° (Right), 89° (Top), 89° (Bottom) |
| Contrast Ratio | 3000 : 1 |
| Backlight Lifetime | 50,000 Hr (Minimum) |
| Touch Type | Projected Capacitive Touch Screen |
| Touch Controller | USB |
| Display Interface | 1 x LVDS, 1 x VGA, 1 x HDMI |
COMMUNICATIONS
| Ethernet | 1 x 10/100/1000 Mbps RTL8111H GbE |
| Wi-Fi | On-board M.2 Slot, WiFi 6 Module Included |
POWER
| Input Voltage | 12V DC 2.5mm Power Jack |
I/O INTERFACE
| Audio | 5W Rear Mounted Speakers |
| l/O Ports | 2 x USB 3.0 2 x USB 2.0 1 x RS232 1 x DB9 |
| Button | 1 x Power Button |
MECHANICAL
| Enclosure Material | Plastics Bezel, Metal Enclosure |
| Enclosure Color | Black |
| Dimensions | 518 x 314 x 56.2 mm |
| Mounting Option | 100 x 100 mm or 75 x 75 mm VESA Mount |
| Cooling | Acitve |
ENVIRONMENTAL
| Operation Temperature | 0°C to 60°C |
| Storage Temperature | -20°C to 75°C |
| Humidity | 10% to 95% @ 40°C Non-condensing |
