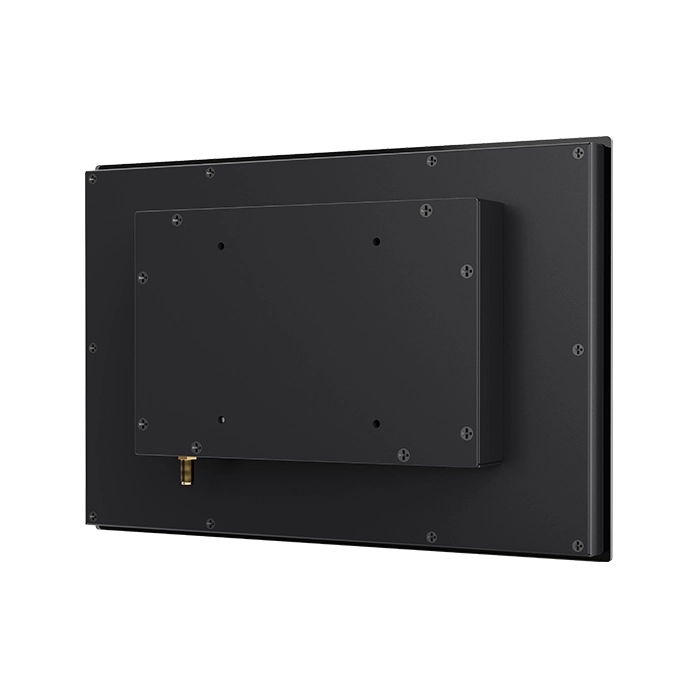

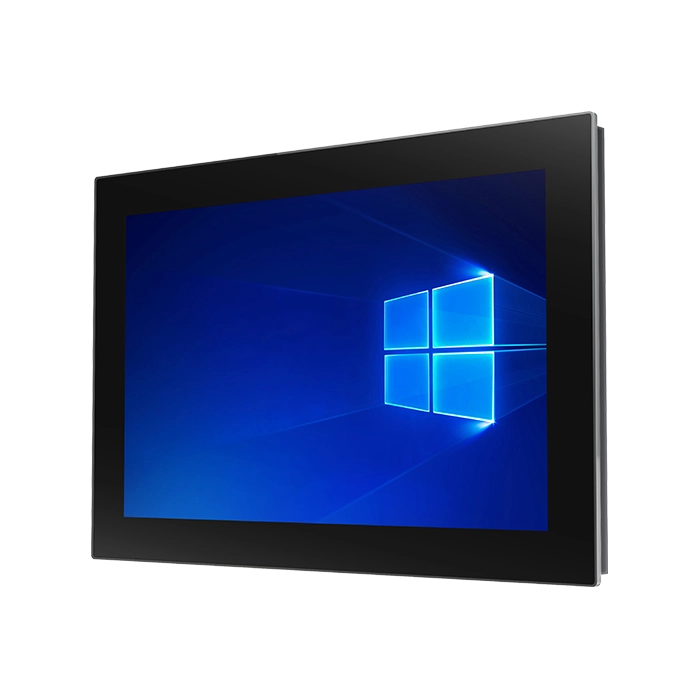

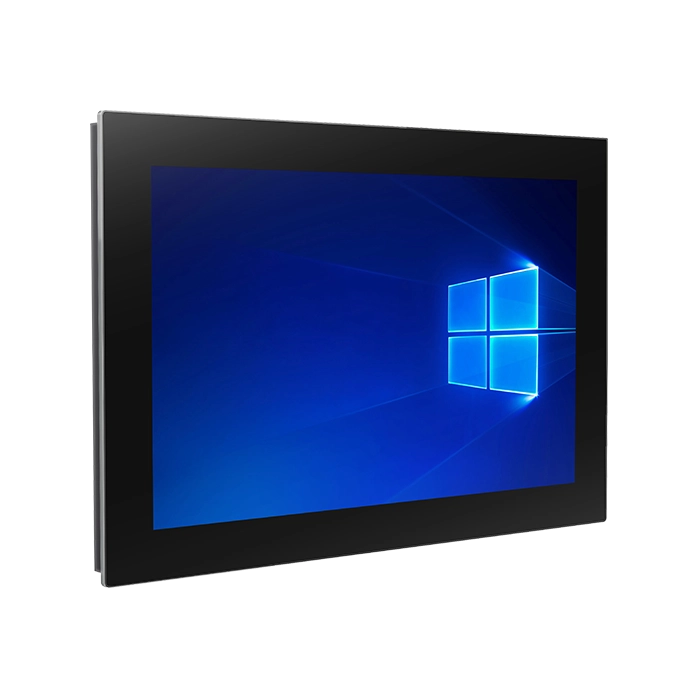

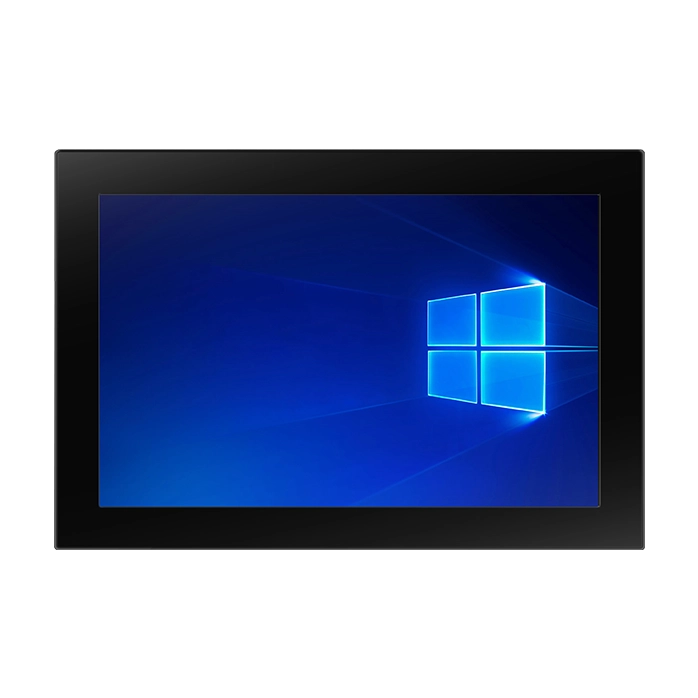

10.1″ Industrial Panel PC | PPC-6610
The PPC-6610 is a 10.1” all-in-one tablet-style industrial panel PC with a 1920 x 1200 touch screen. The system is equipped with a high-performance Intel Atom x5-Z8350 processor. The system has built-in WiFi and an Ethernet port that supports 802.3af POE Power over Ethernet with optional module support, making it perfect for industrial control, HMI, digital signage, building automation, vending machines, and interactive IoT applications.
Key Features
Intel Atom x5-Z8350 Cherry Trail Processor
Ethernet Port Support 802.3at PoE+ Option and On-board WiFi/BT
10.1" LCD Panel with Projected Capacitive Touch Screen
RS232/RS485 and Customizable l/O for Communication
Support Windows 10 and Ubuntu Linux
Specifications
RUGGEDNESS
SYSTEM
DISPLAY
COMMUNICATIONS
POWER
I/O INTERFACE
MECHANICAL
ENVIRONMENTAL
RUGGEDNESS
| Protection | Front Panel lP65 Compliant |
SYSTEM
| Processor | Intel Atom x5-Z8350 Processor (2MB Cache, Up to 1.84GHz) |
| Platform | Intel Cherry Trail |
| Memory | 2GB DDR3 1600MHz (Memory Down) |
| Storage | On-board NAND Flash (32GB Default) |
| OS | Support Windows 10, Ubuntu Linux |
DISPLAY
| Screen Size | 10.1" TFT Active Matrix LED Backlight |
| Resolution |
1920 x 1200 Optional: 1280 x 800 |
| Brightness | 400 nits |
| View Angle | 85° (Left), 85° (Right), 85° (Top), 85° (Bottom) |
| Contrast Ratio | 1300 : 1 |
| Backlight Lifetime | 25,000 Hr (Typical) |
| Touch Type | Projected Capacitive Touch Screen |
| Touch Controller | I2C |
| Display Interface | Micro HDMI, LVDS, eDP or MIPI DSI |
COMMUNICATIONS
| Ethernet | 1 x 10/100/1000 Mbps RTL8111F GbE with 802.3at PoE+ Support |
| Wi-Fi | On-board WiFi Module with Internal Antenna Connector Option |
POWER
| Input Voltage | 12/19V DC (Typical 12V) or PoE (with Optional Module) |
I/O INTERFACE
| Audio | Optional, Up to 2 x 1W Speaker |
| Watchdog Timer | Built-in |
| Camera | Optional: MIPl CSl Up to 5MP |

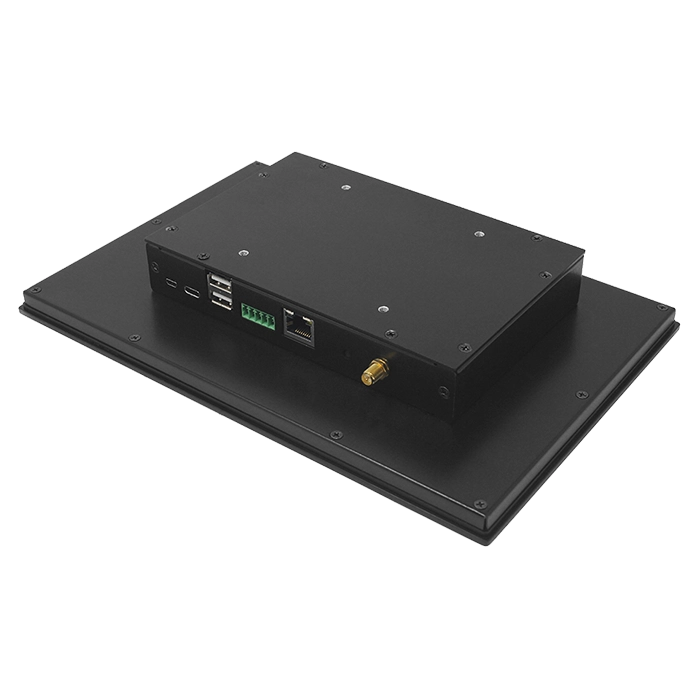

| l/O Ports | 1 x RS232/RS485 Via Terminal Block 2 x USB 2.0 Host 1 x USB 3.0 2 x GPlO Via Terminal Block |
MECHANICAL
| Enclosure Material | Plastics Bezel, Metal Enclosure |
| Enclosure Color | Black |
| Dimensions | 274 x 178 x 35 mm |
| Mounting Option | Wall Mount, Panel Mount or 75 x 75 mm VESA Mount |
| Cooling | Fanless |
ENVIRONMENTAL
| Operation Temperature | 0°C to 50°C |
| Storage Temperature | -20°C to 70°C |
| Humidity | 10% to 95% @ 40°C Non-condensing |
