Industrial Computer | BIS-2237

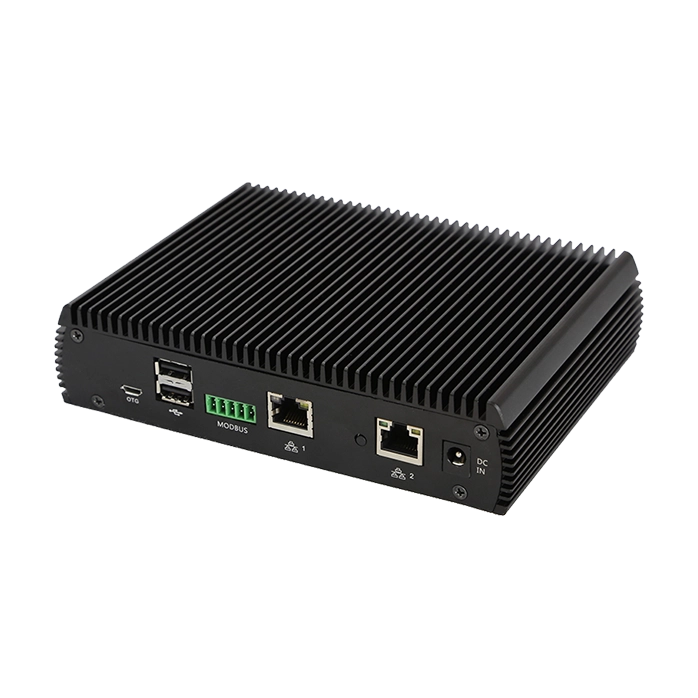

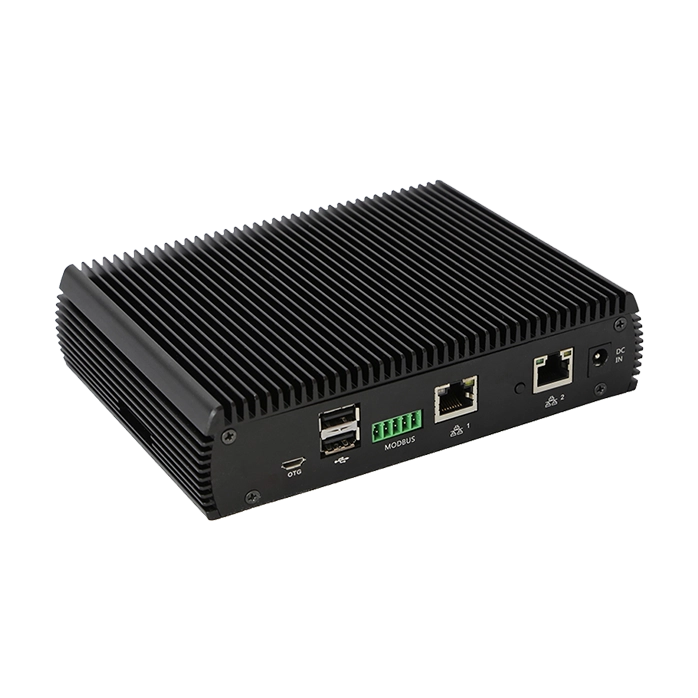

The BlS-2237 is a small form factor fanless embedded Pc based on NXP i.MX8M Mini application processor. The system supports up to two Gigabit Ethernet ports and Power over Ethernet (PoE) option. The rich I/Os and slim design of this fanless computer fits perfectly for digital signage, kiosk, network security, loT gateway and other industrial computer applications.
Key Features
NXP i.MX8M Mini Application Processor with Long Life Cycle Support
Support Up to Two Gigabit Ethernet Ports, with 802.3af PoE Option
RS232, RS485 and GPIO Port Options
On-board WiFi Module, Bluetooth and LTE Module Option
Support Android 10, Yocto Embedded Linux, Debian, Ubuntu

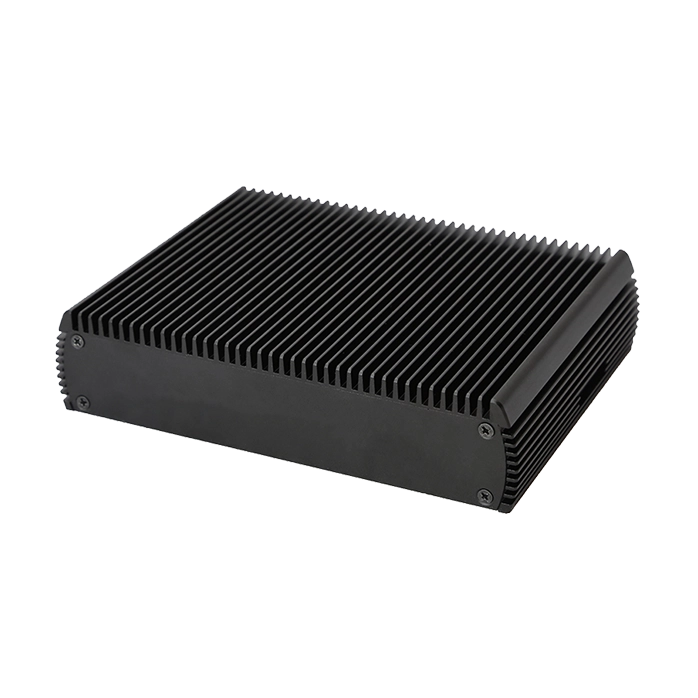

Slim Vent-hole Free Dustproof Fanless Aluminum Enclosure
Specifications
SYSTEM
I/O INTERFACE
POWER
COMMUNICATIONS
MECHANICAL
ENVIRONMENTAL
SYSTEM
| Processor | NXP i.MX8M Mini, 4 x ARM Cortex-A53 @ 1.8GHz, 1 x ARM Cortex-M4 @ 400MHz |
| Platform | ARM Cortex-A53 |
| Memory | On-board 2GB LPDDR4, Up to 4GB |
| Storage | On-board iNAND Flash (8GB Default), 1 x Micro SD Slot |
| OS |
Support Android 10 Yocto Embedded Linux Ubuntu |
I/O INTERFACE
| Audio | 1 x Mono Class D Speaker Out Internal Header, 2W (4Ω), 2 (R/L) x HP Out Internal Header |
| Display Interface | Internal MlPl DSl and LVDS |
| Watchdog Timer | Built-in |
| l/O Ports | 1 x RS232/RS485 Via Terminal Block 2 x GPlO Via Terminal Block 2 or 3 x USB 2.0 Type A 1 x USB Type C 2.0 OTG/Host 1 x M.2 Type E PCle Option |
|
Expansion Slot
|
1 x 40 pin Internal Connector with PCle x1 for 2nd Ethernet, GPlO, Front Panel Control, PoE Power Input |
POWER
| Power Input | 12V-24V DC or 24V AC Via Barrel Connector or Terminal Block, 802.3at PoE Option |
COMMUNICATIONS
| Ethernet | 1 x 10/100/1000 Mbps GbE with PoE Option, Second 10/100/1000 Mbps PCle GbE (Via PCle Add-on Card) |
| Wireless | 1 x WiFi / Bluetooth USB Module, 802.11 b/g/n + Bluetooth v4.0 |
MECHANICAL
| Enclosure Material | Aluminum |
| Enclosure Color | Black |
| Dimensions | 170 x 124 x 39 mm |

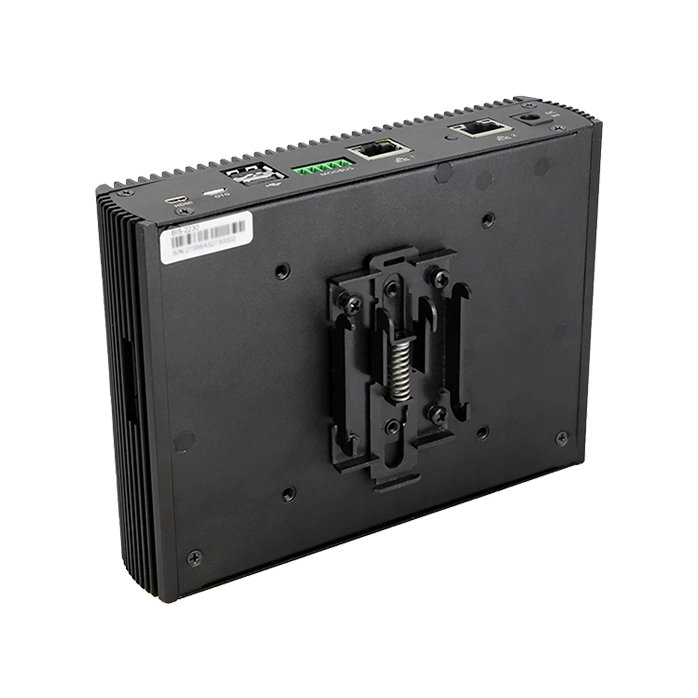

| Mounting Option | Support 75 x 75mm VESA Mount or DlN-Rail Mount with Optional Bracket |
| Cooling | Fanless |
ENVIRONMENTAL
| Operation Temperature | -20°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 10% to 95% @ 40°C Non-condensing |
