Industrial Computer | BIS-2230

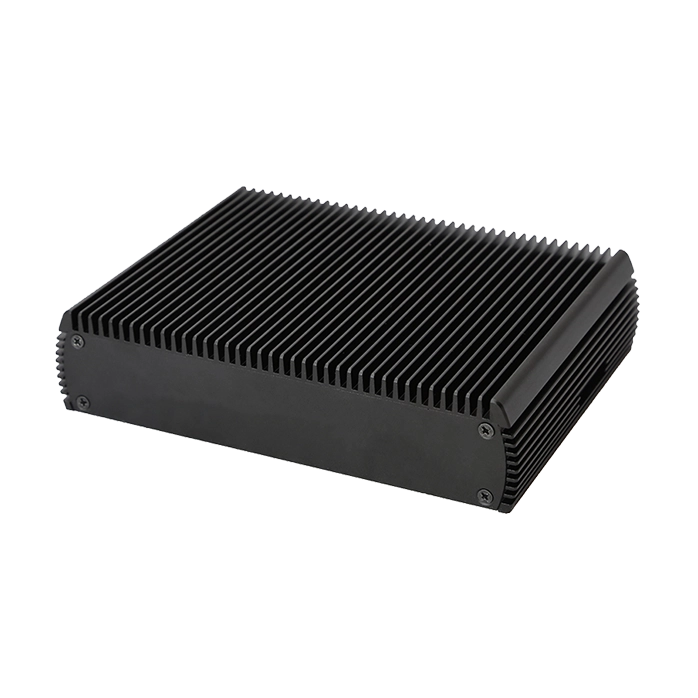

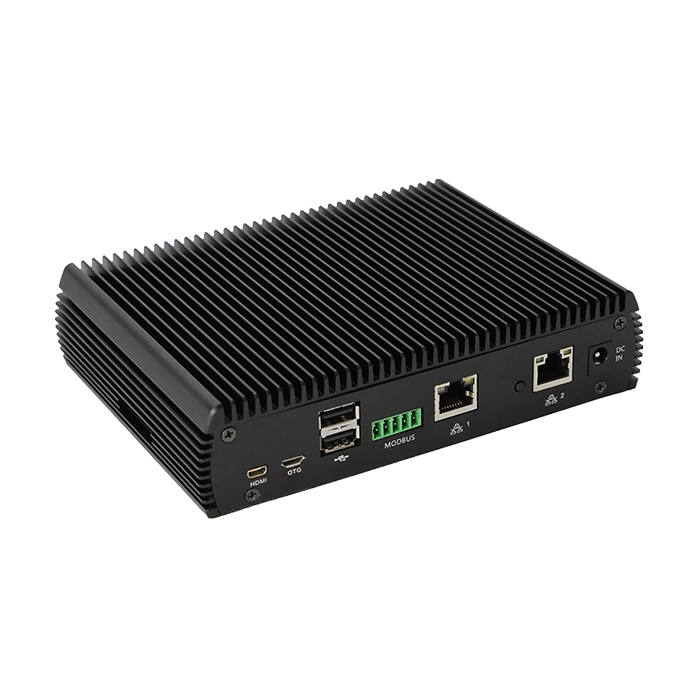

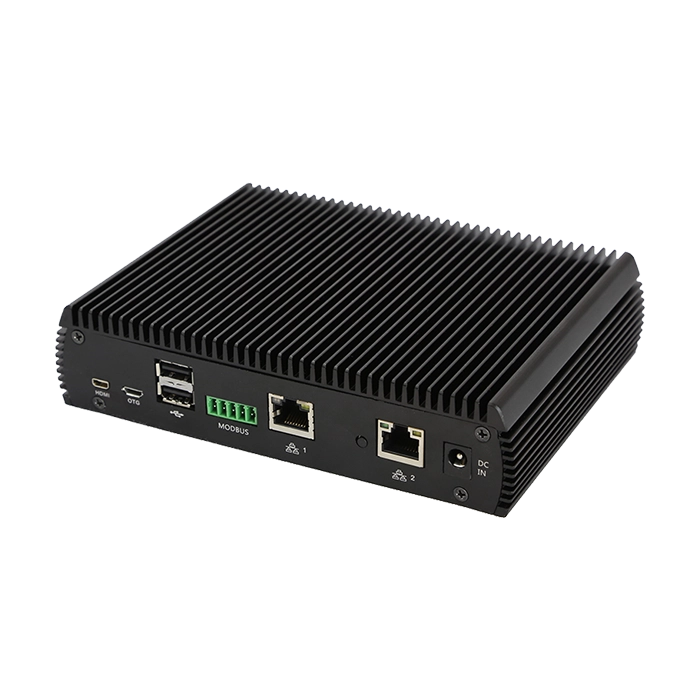

The BIS-2230 is a small form factor fanless embedded PC based on INXP i.MX6 application processor. The system supports up to two Gigabit Ethernet ports and Power over Ethernet (PoE) option. The rich I/Os and slim design of this fanless computer fits perfectly for digital signage, kiosk, network security, IoT gateway and other industrial computer applications.
Key Features
NXP i.MX6 Application Processor with Long Life Cycle Support
Support Up to Two Gigabit Ethernet Ports, with 802.3af PoE Option
RS232, RS422/RS485 and CAN Bus Port Options
On-board WiFi Module and Bluetooth 4.1 BLE
Support Android 6.0.1, Debian Linux and Yocto Embedded Linux
Slim Vent-hole Free Dustproof Fanless Aluminum Enclosure
Specifications
SYSTEM
I/O INTERFACE
POWER
COMMUNICATIONS
MECHANICAL
ENVIRONMENTAL
SYSTEM
| Processor | NXP i.MX6 1GHz Dual Lite or Quad-core |
| Platform | ARM Cortex A9 |
| Memory | On-board 1GB DDR3 |
| Storage | On-board iNAND Flash (8GB Default), 1 x Micro SD Slot |
| OS |
Support Android 6.0.1 Debian Linux |
I/O INTERFACE
| Audio | Internal Line-out, MlC-in. Headphone, Speaker Out Headers |
| Display Interface | 1 x Micro HDMI |
| Watchdog Timer | Built-in |
| l/O Ports | 1 x RS232/RS485/CAN 2 x GPlO Via Terminal Block 2 x USB 2.0 Type A 1 x Mini-USB OTG 2 x Internal USB 2.0 Header |
| Expansion Slot |
1 x 40 pin Internal Connector with PCle x1 for 2nd Ethernet, GPlO, Front Panel Control, PoE Power Input |
POWER
| Power Input | 5V DC, PoE or 9V - 36V DC (Dual NIC Version) |
COMMUNICATIONS
| Ethernet | 2 x Gigabit Ethernet, RJ45, One Support 802.3af PoE Power Input (Optional PoE Module) |
| Wireless |
On-board WiFi/ BT Module 802.11 b/g/n + BLE 4.1 with External Antenna Connector Option |
MECHANICAL
| Enclosure Material | Aluminum |
| Enclosure Color | Black |
| Dimensions | 170 x 124 x 39 mm |

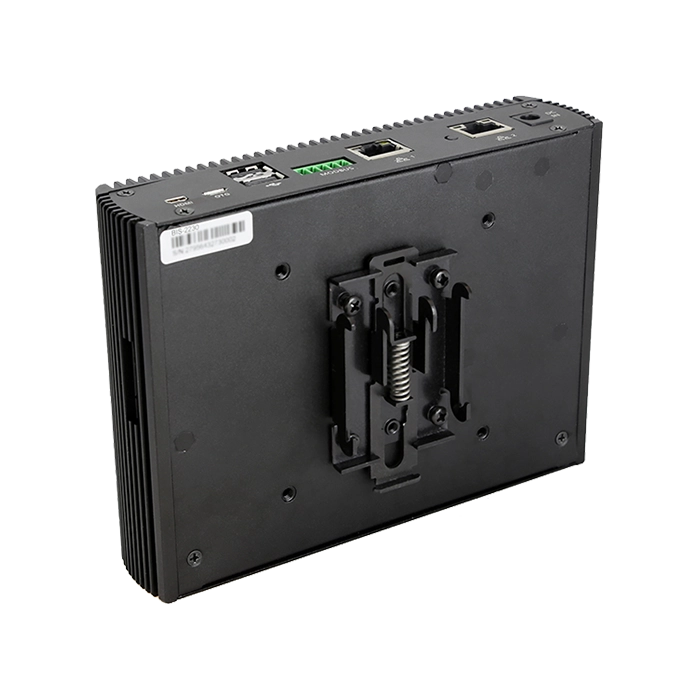

| Mounting Option | Support 75 x 75mm VESA Mount, or DlN-Rail Mount with Optional Bracket |
| Cooling | Fanless |
ENVIRONMENTAL
| Operation Temperature | -20°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 10% to 95% @ 40°C Non-condensing |
